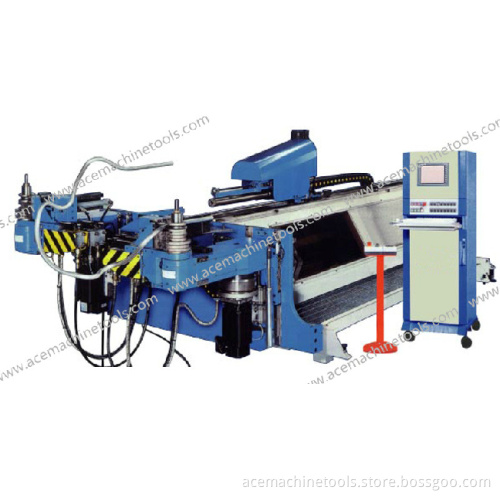

Left and Right Head Bending Machine CNC 18/28/38/50/63/76/89/114

Left and Right Head Bending Machine


Product Number: 111214251716
Product Name: Left and Right Head Bending Machine
Model: CNC 18/28/38/50/63/76/89/114
Series: 6A-2SVU-4SVU


Product Description
Left and Right Hand Bending Machine Model GM-CNC 18/28/38/50/63/76/89/114 6A-2SVU-4SVU
1. Multi-axes bending head includes Y(feeding), B(rotating), C(bending), V(bending head vertical movementfor
Die changing), H(Horizontal movement for die changing)are all electrically driven.
2. Standard machinewith 3-stacks of tooling at upper (anticlockwise)station and the other 3-stacks of tooling
At lower(clockwise) station to complete multiradius component in one operation without any dies changing and
Possible zone of interference, which greatly reduce costs and set up time.
3. It's available to do pushing bending and also draw rotary bending alternatively as programmed, suitable
For a wide range of bending components which with complex modeling to automotive, fashion furniture, complex
Hydraulic tubing and aerospace, heating pipe...Etc.
