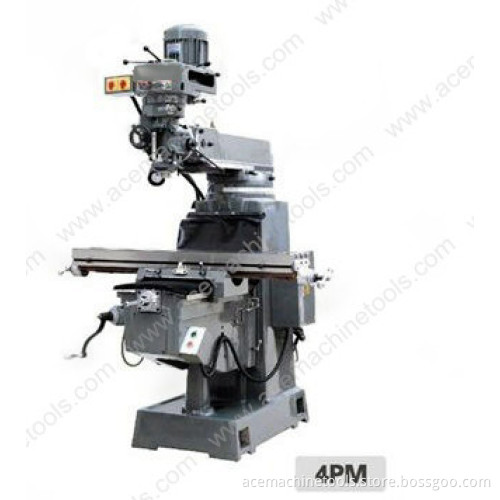

High Precision Universal Radial Milling Machine (4PM)

High Precision Universal Milling Machine(4PM)

Table size: 1270*254mm
Travel (Longitude): 900mm
Travel (Cross ward): 370mm
Travel (Vertical): 360mm
Max. Distance from the spindle nose to table: 400mm
Tilt Angle (Forward and Backward): ± 45°
Tilt Angle (Left and Right): ± 90°



Features:
1, Taiwan original milling head, NSK P4 spindle bearing;
2, Twice precisely scraping;
3, Head tilt angle ± 45° /± 90° ;
4, OEM MANUFACTURER;
5, For electric parts, mould and hole, slot and frame processing;
6, Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm;
7, Spindle tolerance 0.002mm;
8, Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.


Standard Accessories:
Oil pump
Working light
Draw bar
Way cover
Operation manual
Tool and toolbox

Optional Accessories:
NT40 Milling chuck
Clamping kits
6" vise
Coolant system
DRO
Power feed
Elevating motor
