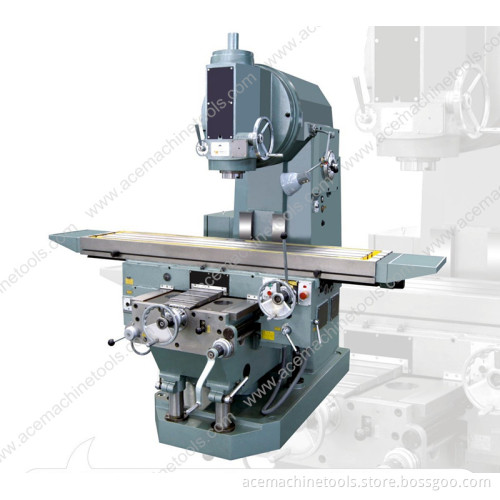

Heavy Duty Vertical Knee Type Milling Machine (M5042B)

Heavy Duty Vertical Knee Type Milling Machine (M5042B)

Table size: 428*2000mm
Longitudinal travel (Manual/Power): 1250/1230mm
Cross travel (Manual/Power): 420/410mm
Vertical travel (Manual/Power): 480/470mm


Main Characteristics & Application:
M5042B heavy-duty vertical knee type milling machine is our newly designed that can be more widely applied in processing work featured with bigger worktable and longer travel. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. With high rigidity, accuracy and efficiency, it is an ideal machine tool for machining process, maintenance, instrument, die and moulding work.
T TYPE lead screw in 3 axes ensures convenient operation, reliable performance, and higher processing accuracy.
The movement direction is changed through mechanical clutch. Inside the feed gear box, mechanical cluth, instead of magnetic clutch to protect machine parts and electric components.
Complete coolant and lubrication system.

Standard Accessories:
Complete coolant system
2 sets arbor support
Halogen machine lamp
Automatic central lubrication system
Cutter arbor
Foundation bolts and nuts

Optional Accessories:
2/3 axis DRO
Machine Vice
Dividing head
Rotary table
Milling chuck
Slotting head
