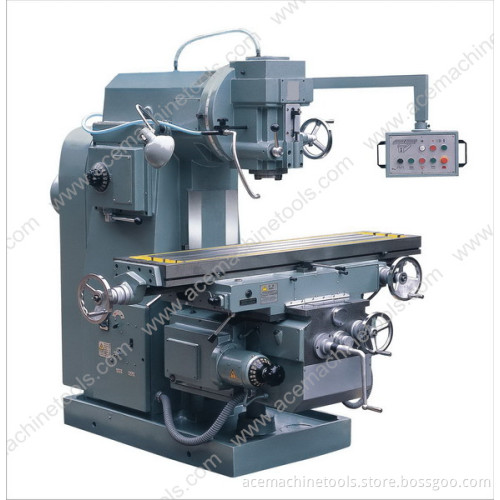

Vertical Knee Type Milling Machine (M5036)

Vertical Knee Type Milling Machine (M5036)

Worktable:
Table size: 360*1600mm
Longitudinal travel (Manual/Power): 1020/1000mm
Cross travel (Manual/Power): 300/280mm
Vertical travel (Manual/Power): 410/400mm


Main Characteristics & Application:
Model M5036 Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, Cutter, helix groove, cam and tub wheel.
Vertical milling head can be swiveled by ± 45° , Spindle quill can be moved in vertical. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. It has the large working table, a set of cantilever for electric button and a longitudinal handwheel in front of the table, So the machine can be easy to operate. Working table and slide ways adopted quality cast hardened ensure high accuracy.

Standard Accessories:
Complete coolant system
2 sets arbor support
Halogen machine lamp
Automatic central lubrication system
Cutter arbor φ 32, φ 40
Foundation bolts and nuts

Optional Accessories:
2/3 axis DRO
Machine Vice
Dividing head
Rotary table
Milling chuck
Slotting head
