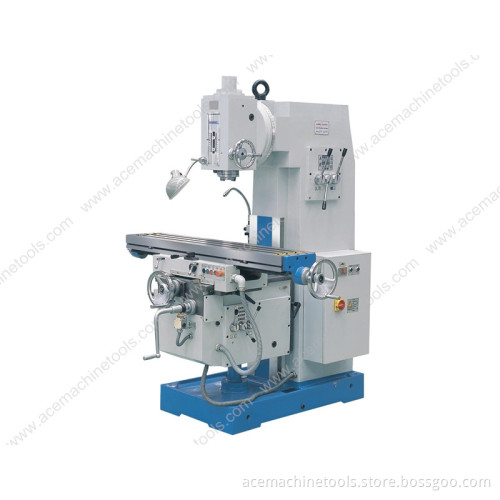

Vertical Knee Type Milling Machine (M5030C)

Vertical Knee Type Milling Machine (M5030C)

Table size: 300*1250mm
Longitudinal travel of worktable: 750mm
Cross travel of worktable: 265mm
Vertical travel of worktable: 410mm



Main Characteristics & Application:
Model M5030C Vertical Knee-type Milling Machine is used for milling steel, cast and colored metal. Vertical milling head can be swiveled by 45° To mill plane, inclined and groove, drilling, boring etc...Spindle quill can be moved in vertical. It can mill all kind of complex parts with various attachments.
The guide ways are rectangular which make the contact area larger. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, also can be moved rapidly. Working table and slide ways are hardened which ensure high accuracy. The machine is well suited for milling parts of autocycle, sartorious, electric tool. It can be milled by high-speed steel cutter and horniness steel cutter.

Standard Accessories:
Complete coolant system
2 sets arbor support
Halogen machine lamp
Automatic central lubrication system
Cutter arbor φ 27
Foundation bolts and nuts

Optional Accessories:
2/3 axis DRO
Machine Vice
Dividing head
Rotary table
Milling chuck
Slotting head
