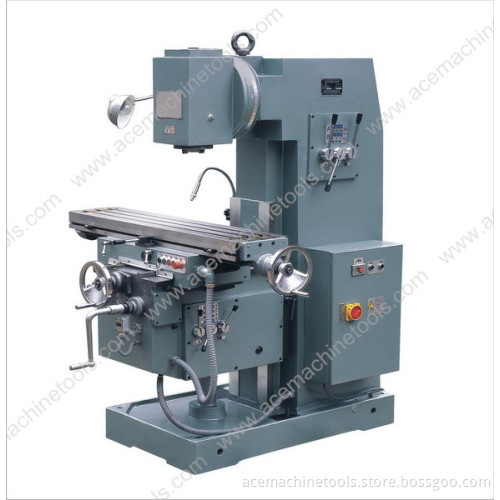

Vertical Knee Type Milling Machine (M5025B)

Vertical Knee Type Milling Machine (M5025B)
Table size: 250*1000mm
Longitudinal travel: 720mm
Cross travel: 265mm
Vertical: 410mm


Main Characteristics & Application:
Model M5025B, M5030 Vertical Knee-type Milling Machine is used for milling steel, cast and metal of color. Vertical milling head can be swiveled by 45° To mill plane, inclined and groove, drilling, boring etc. It can mill all kind of complex parts with various attachments.

The guide ways are rectangular which make the contact area larger. The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways are hardened, ensure high accuracy.

The machine is well suited for milling parts of autocycle, sartorius, electric tool. It can be milled by high-speed steel cutter and horniness steel cutter.


Standard Accessories
Complete coolant system
2 sets arbor support
Halogen machine lamp
Automatic central lubrication system
Cutter arbor φ 22
Foundation bolts and nuts

Optional Accessories
2/3 axis DRO
Machine Vice
Dividing head
Rotary table
Milling chuck
Slotting head
