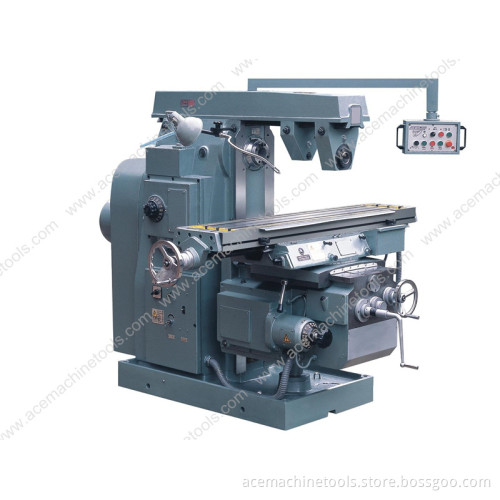

Universal Knee Type Milling Machine (M6142*22)

Universal Knee Type Milling Machine (M6142*22)

Worktable size: 420*2200mm
Longitudinal travel of worktable (Manual/Power): 1400/1280mm
Longitudinal travel of worktable (Manual/Power): 380/360mm
Vertical travel of worktable: 470/460mm

Main Characteristics & Application:
Universal Knee-type Milling Machine, has extra travel in longitudinal, operating control adopts a cantilever panel. It is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, cutter, helix groove, cam and tub wheel.

Construction features
The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. Working table and slide ways adopted quality cast hardened ensure high accuracy.

Standard Accessories
Complete coolant system
2 sets arbor support
Halogen machine lamp
Automatic central lubrication system
Cutter arbor φ 22 φ 27 φ 32
Foundation bolts and nuts

Optional Accessories
2/3 axis DRO
Machine Vice
Dividing head
Rotary table
Milling chuck
Vertical milling head
