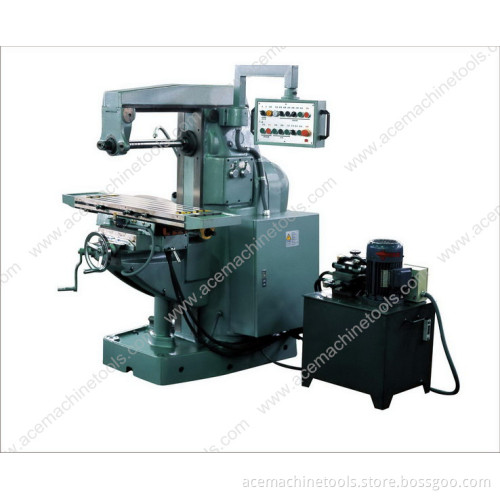

Hydraulic Milling Machine (MY6025)

Hydraulic Milling Machine (MY6025)

Table size: 250*900mm
Longitudinal travel: 350/450mm
Cross travel: 165mm
Vertical travel: 300mm


Main Characteristics & Application:
MY6025 is a micromidi semi-automation hydraulic milling machine for metal cutting. It is widely used for milling plane, inclined surface, vertical surface groove, etc by employing disk cutters, angular milling cutters, formed cutters & face milling cutters. Milling operations various directions can be done when mounted with the vertical milling head. Milling cyclic groove can be finished by rotary worktable. The machine will be able to cut gear and bevel gear under M=3 with universal dividing head.

MY6025 hydraulic milling machine is extensive coverage. Particularly well adapt for mass production of undersized workpiece with efficient and convenient.

Spindle is self-lubrication by cycloidal pump.

Well established for advanced and reasonable construction, flexible operations and convenient maintenance.

The workpiece accuracy of the machine is grade IT8 and surface roughness 1.6um.

Hydraulic infinitely variable speeds for longitudinal feed are used to ensure fast forward, fast backward and so on. Cross and vertical are manual feed.
