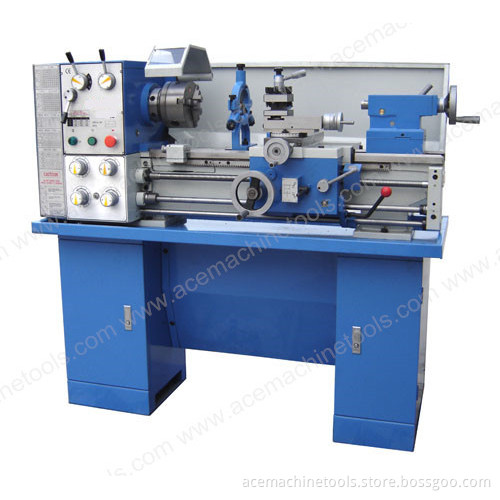

Bench Turning Lathe Machine, Single-Tool Holder CNC Lathe (T300/914)

Bench Turning Lathe Machine T300/914


Swing over bed: 300mm
Swing over gap: 430mm
Spindle Hole: 38mm
Max. Length of work piece: 914mm

This machine has the following features:
1, Precision ground and hardened bedways
2, The spindle is supported with precision roller bearings
3, Head stock gears are made of high quality steel ground and hardened
4, Easy operating speed change levers
5, Removable gap is provided for larger diameter work
6, Spindle speed range 70-2000 RPM
7, Three differnet lengths bed are available
8, Easy operating gear box has various feeds and thread cutting function
9, ASA D1-4 camlock spindle nose
10, With or without cabinet according to requirenent


Standard accessory
1. Sleeves MT 5/3
2. Centers (Dead center MT. 3 Alloy center MT. 2)
3.3 Jaw chuck 1 plece
4. V-belt(A762 2 pieces)
5. Metric changing gears (m=1.25...8 pieces)
6. Tool box and tools 1 set 1 set
7. Oil gun 1 piece
Extra Equipment(at extra cost)
1.4-jaw chuck(200mm) 1 piece(8")
2. Face plate(300mm) 1 piece(12")
3. Steady rest 1 piece
4. Follow rest 1 piece
5. Foot stand
6. Foot brake (5.6 special ordering)
