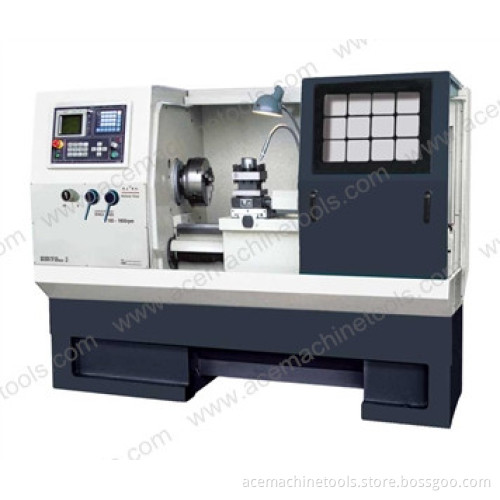

CNC Automatic Turning Lathe Machine (T400/750&T460/750)

CNC Lathe Machine (T400/750&T460/750)

Over bed: 400/460mm
Maximum turned length: 750/1000/1500mm
Max. Swing in gap: 660/700mm
Spindle bore: 80mm


This machine has the following features:
Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.

Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.

Both chuck and tailstock are supplied with hydraulic or manual type.

The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.

The spindle bore size is Ø 80mm. The spindle system is high in the rigidity and accuracy.
