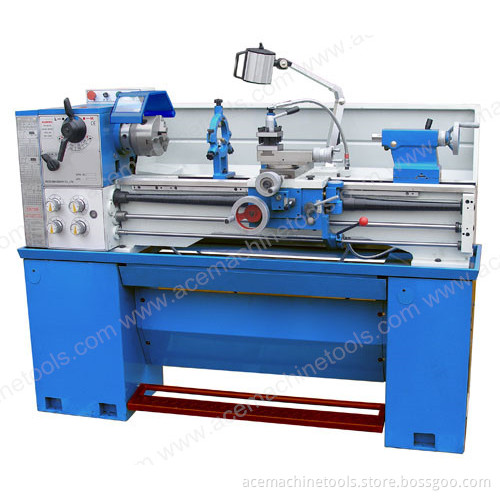

Horizontal Bench Turning Lathe Machine (T330/1158)

Bench Turning Lathe Machine (T330/1158)

Swing over bed: 330mm
Swing over gap: 476mm
Spindle Hole: 35mm
Bed length: 1158/1408/1658mm

This machine has the following features:
1, Precision ground and hardened bedways
2, The spindle is supported with precision roller bearings
3, Head stock gears are made of high quality steel ground and hardened
4, Easy operating speed change levers
5, Removable gap is provided for larger diameter work
6, Spindle speed range 70-2000 RPM
7, Three differnet lengths bed are available
8, Easy operating gear box has various feeds and thread cutting function
9, ASA D1-4 camlock spindle nose
10, With or without cabinet according to requirenent


Standard accessory
1. Sleeves MT 5/3
2. Centers (Dead center MT. 3 Alloy center MT. 2)
3.3 Jaw chuck 1 plece
4. V-belt(A762 2 pieces)
5. Metric changing gears (m=1.25...8 pieces)
6. Tool box and tools 1 set 1 set
7. Oil gun 1 piece
Extra Equipment(at extra cost)
1.4-jaw chuck(200mm) 1 piece(8")
2. Face plate(300mm) 1 piece(12")
3. Steady rest 1 piece
4. Follow rest 1 piece
5. Foot stand
6. Foot brake (5.6 special ordering)
