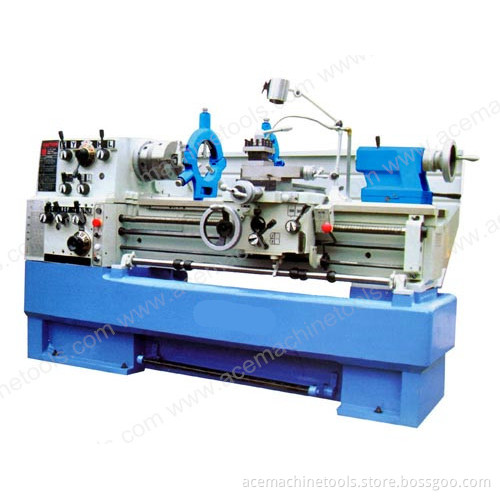

Electric Precision Gearhead Lathe Machine (T410-1000/1500/2000 T460-1000/1500/2000)

Precision Gearhead Turning Lathe Machine (T410-1000/1500/2000 T460-1000/1500/2000)

Swing over bed: 410/460mm
Swing over cross slide: 220/270mm
Distance between centers: 1000/1500/2000mm
Swing in gap: 640/690mm
Spindle bore: 58mm



This machine has the following features
No change gear in tool box.
The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametral thread and module thread.
Minimum Cross feed 0.01mm/rev, Minimum Longitudinal feed 0.046mm/rev.


Standard Accessories
1, Reduction Sleeve 5/3#
2, Center MT3#(Dead Center, Alloy Center)
3, Three Jaw Chuck 160mm
4, Chip Tray
5, Splash Guard
6, Tool Box & Tools 1set

Special Accessories
1, Four Jaw Chuck
2, Face Plate
3, Driving Plate
4, Quick Change Tool Post
5, Steady Rest
6, Follow Rest
7, Brake
8, Coolant System
9, Taper Turning Attachment
10, Live Center
11, Drill Chuck
12, Chuck Cover
13, Tool Post Cover
14, Leadscrew Cover
15, Work Light
