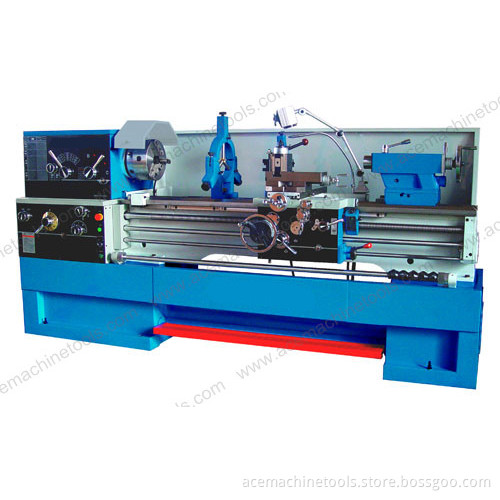

Big Bore Gap Bed Turning Lathe Machine (T460/1000 T410/1000 T360/1000)

Big Bore Gap Bed Turning Lathe Machine (T460/1000 T410/1000 T360/1000)


Main parameters:
Max. Swing dia. Over bed: φ 360/410/460mm
Max. Swing dia. Over carriage: φ 200/250/290mm
Distance between centers: 1500/2000mm
Spindle bore: φ 80


This machine has the following features:
1, The surface of the bed ways is supersonic frequency hardened and precision ground with a long service life.
2, The design of the main drive is optimized and the gears in the headstock are precision ground.
3, The noise of the machine is low and its sound is pleasing to hear.
4, The spindle bore size is 80mm. The spindle system is high in rigidity and accuracy. There is no vibration when turning with a cutting depth of 10mm
5, There is no need for change gears. The machine can turn about 200 kinds of metric. Whitworth, module and D. P. Threads including special whit worth threads such as 7-1/2, 9-1/2, 10-1/2, 11, 11-1/2, 13, 13-1/2, 19, 27 t. P. I and pipe threads.
6, An automatic stopping device is used to realize automatic stop for the machining of a certain length workpiece, which is safe and reliable. A pedal or electromagnetic braking device stops the machine quickly and effectively.
