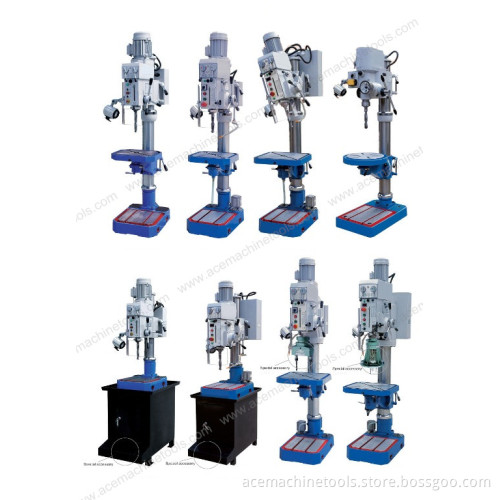

Pillar/Column Type Vertical Drilling Machine (D5035/D5040/D5050)

Pillar/Column Type Vertical Drilling Machine (D5035/D5040/D5050)

Parameters:
Max. Drilling dia: Φ 35/Φ 40/Φ 50
Max. Travel of spindle: 160/190/200mm
Max. Distance from spindle nose to surface of worktable: 585/665/590mm
Max. Distance from spindle nose to surface of base worktable: 1140/1195/1175mm
Dimension of worktable: 500*420/520*440/580*460mm
Swivel angle of worktable: ± 45°


Features:

1. New-designed, pleasing appearance, compact construction, wide speed range.
2. Easy operation with its unique workable, and both motor-drive and manual-operated lifting device.
3. Swivel angle of worktable ± 45°
4. Equipped with coolant system and tapping mechanism.
5. Equipped with shortcut and overload protection, its electrical system with powerful spindle motor.
6. Ideal choice for single piece, small batch and mass production for drilling, counter boring, reaming, tapping, spot facing etc.
