MPRS-M

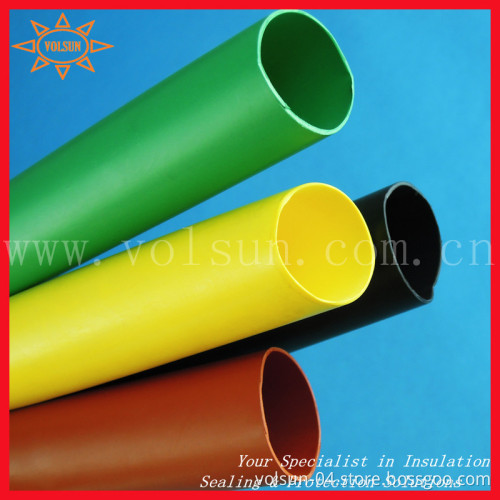

Medium Voltage Heat shrink busbar sleeve
Description
Medium Voltage Heat shrink busbar sleeve, a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance. Typical applications include insulation of electrical bus bar rated up to 24KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.
Features
Shrink ratio: 2.5: 1
Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
Min. Shrink temperature: ≥ 84degree C
Min. Full recovery temperature: ≥ 120degree C
Continuous operating temperature: -55~125degree C
RoHS compliant
Standard colors: Red, yellow, green and other colors available on your request
Dimensions
Medium Voltage Heat shrink busbar sleeve
Description
Medium Voltage Heat shrink busbar sleeve, a kind of continuous tube shape material made of radiation cross-linked polyolefin, carry excellent insulating performance. Typical applications include insulation of electrical bus bar rated up to 24KV or higher voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.
Features
Shrink ratio: 2.5: 1
Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
Min. Shrink temperature: ≥ 84degree C
Min. Full recovery temperature: ≥ 120degree C
Continuous operating temperature: -55~125degree C
RoHS compliant
Standard colors: Red, yellow, green and other colors available on your request
Dimensions
