10kv Black Red 30mm Busbar Heat Shrink Tube (MPRS-10KV-A 10KV)
- Payment Type:
- L/C, T/T, D/P, Paypal, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou, Jiangsu |
|---|---|
| Payment Type: | L/C, T/T, D/P, Paypal, Money Gram, Western Union |
Product Description
Product Description

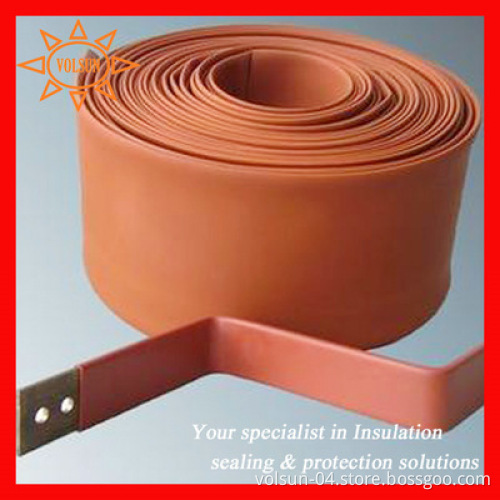

Tracking resistant busbar heat shrink tube
Description
Tracking resistant busbar heat shrink tube, made of radiation cross-linked polyolefin. Typical applications include insulation of electrical bus bar with 1KV or lower voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.
Features
. Meets: GB/T 1059-2007
. Shrink ratio: 2: 1
. Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
. Min. Shrink temperature: ≥ 84° C
. Min. Full recovery temperature: ≥ 120° C
. Continuous operating temperature: -55° C~125° C
. RoHS compliant
. Standard colors: Red, yellow, green and other colors available on your request
Description
Tracking resistant busbar heat shrink tube, made of radiation cross-linked polyolefin. Typical applications include insulation of electrical bus bar with 1KV or lower voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.
Features
. Meets: GB/T 1059-2007
. Shrink ratio: 2: 1
. Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
. Min. Shrink temperature: ≥ 84° C
. Min. Full recovery temperature: ≥ 120° C
. Continuous operating temperature: -55° C~125° C
. RoHS compliant
. Standard colors: Red, yellow, green and other colors available on your request
| Size | Expanded inner diameter ( mm ) | Recovered ( mm ) | Standard package | |
| Inner diameter | Wall thickness | m/spool | ||
| 10kV 15/6 | ≥15 | ≤6.0 | 2.5±0.20 | 25 |
| 10kV 20/8 | ≥20 | ≤8.0 | 2.5±0.20 | 25 |
| 10kV 25/10 | ≥25 | ≤10.0 | 2.5±0.20 | 25 |
| 10kV 30/12 | ≥30 | ≤12.0 | 2.5±0.20 | 25 |
| 10kV 40/16 | ≥40 | ≤16.0 | 2.8±0.30 | 25 |
| 10kV 50/20 | ≥50 | ≤20.0 | 2.8±0.30 | 25 |
| 10kV 65/26 * | ≥65 | ≤26.0 | 2.8±0.30 | 25 |
| 10kV 75/30 * | ≥75 | ≤30.0 | 2.8±0.30 | 25 |
| 10kV 85/34 * | ≥85 | ≤34.0 | 2.8±0.30 | 25 |
| 10kV 100/40 | ≥100 | ≤40.0 | 2.8±0.30 | 25 |
| 10kV 120/48 | ≥120 | ≤48.0 | 2.8±0.30 | 25 |
| 10kV 150/60 | ≥150 | ≤60.0 | 2.8±0.30 | 25 |
| 10kV 180/72 | ≥180 | ≤72.0 | 2.8±0.30 | 25 |
| 10kV 210/84 * | ≥210 | ≤84.0 | 2.8±0.30 | 20 |
| 10kV 230/92 * | ≥230 | ≤92.0 | 2.8±0.30 | 20 |
| 10kV 250/100 * | ≥250 | ≤100 | 2.8±0.30 | 20 |
| 10kV 300/120 | ≥300 | ≤120 | 2.8±0.30 | 15 |
