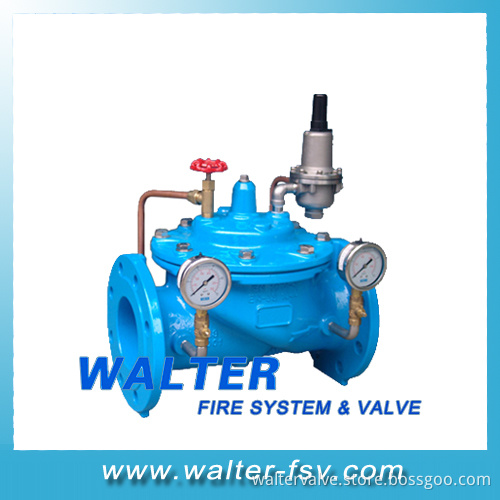

Cast Iron Pressure Reducing Valve Adjustment

Pressure Reducing Valve automatically reduces a higher inlet pressure to a steady lower downstream pressure, regardless of changing flow rate and/or varying inlet pressure.
This valve is an accurate, pilot-operated regulator capable of holding downstream pressure to a re-determined limit. When downstream pressure exceeds the pressure setting of the control pilot, the main valve and pilot valve close drip-tight.
Our Pressure Reduing Valve are adopt the lastest technologies, with fully bore design, lowest head lose when fully open.
The PRESSURE REDUCING VALVE is design with anti-cavitation for application where there is high potential for damage from Cavitation, which provide optimum internal pressure control through a unique anti-cavitation trim design.
1. Body/Bonnet: GGG50 or Stainless Steel 2. Spring: SS304
3. Stem: SS / Bronze 4. Disc Retainer: DI/SS/Bronze
5. Seat: SS/Brass 6. Seal Rings: NBR/EPDM/Viton
7. Pilot: Stainless Steel 8. Pipe or Tubes: Coppe or Stainless Steel
9. Working Pressure: PN10/16/25
10. Connection: Flanged acc. To EN1092.2, ISO 7005-2, ANSI/JIS/ AS2129
11. Epoxy Resin Coated to 300 microns inside & outside
12. Anti-cavitation Solution

Our Pressure Reducing Valve Size from DN50 to DN1000; Also can do OEM or ODM for Pressure Reducing Valve, Float Control Valve, Pressure Relief Valve, Solenoid Control Valve.
Welcome to contact us for more details.
