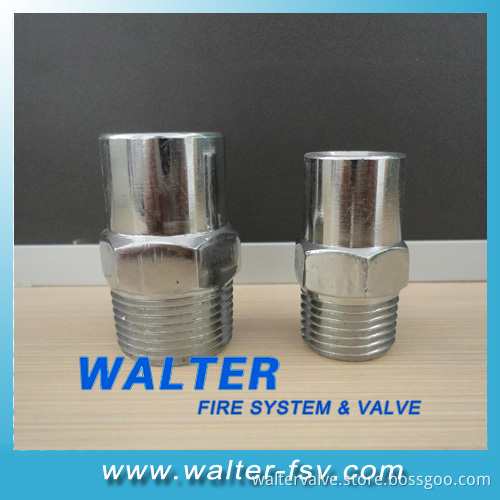

High Velocity Open Spray Nozzle

Spary Nozzle is Designed for use in water spray fixed systems for fire protection applications where a high velocity water application may be required
Open nozzle for use on deluge systems
1- Body: Brass
2- Working Pressure: 0.35Mpa
3- Size: NPT or R1/2", 3/4", 1"
4- K Factor: 16/21.5/26.5/33.7/43/53.5/67.5/80/86/107/117/160
5- Flow Rate: 30/40/50/63/80/100
6- Finished: Brass or Chorme Plated
==============================================================
Other Type Sprinklers' Specification:
Upright - Pendent - Horizontal Sidewall - Concealed Pendent
Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response
Thread Size [Optional]: NPT1/2 or R1/2
Nominal Orifice Size: 1/2 Inch
Nominal K-Factor: 5.6 (U. S. )/80 (metric)
Max. Working Pressure: 175 psig/1.2 mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)
Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)
Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated
Escutcheon Finish: Chrome Plated or Color Coated In Any Color
WALTER-FSV Company produce & supply Upright Fire Sprinkler, Pendent Fire Sprinkler, Sidewall Fire Sprinkler, ESFR Fire Sprinkler, Spary Nozzle, Impact Fire Sprinkler Nozzle, Concealed Fire Sprinkler.
