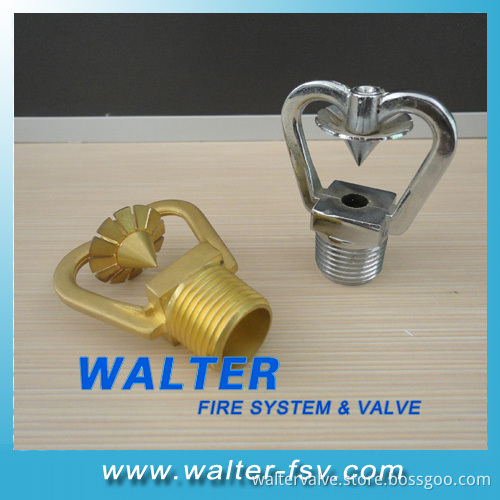

Impact Fire Sprinkler of Chrome Finished
Impact Sprinkler is Open Type sprinbkler and for Deluge System.
1- Body: Brass
2- Working Pressure: 0.35Mpa
3- Size: NPT or R1/2", 3/4", 1"
4- K Factor: 16/21/38/34/42/50/57/64/80/115
5- Spray Angle: 90/120/150
6- Finished: Brass or Chorme Plated, White
==============================================================
Other Type Sprinklers' Specification:
Upright - Pendent - Horizontal Sidewall - Concealed Pendent
Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response
Thread Size [Optional]: NPT1/2 or R1/2
Nominal Orifice Size: 1/2 Inch
Nominal K-Factor: 5.6 (U. S. )/80 (metric)
Max. Working Pressure: 175 psig/1.2 mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)
Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)
Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated
Escutcheon Finish: Chrome Plated or Color Coated In Any Color
WALTER-FSV Company produce & supply Upright Fire Sprinkler, Pendent Fire Sprinkler, Sidewall Fire Sprinkler, ESFR Fire Sprinkler, Spary Nozzle, Impact Fire Sprinkler Nozzle, Concealed Fire Sprinkler.
Impact Sprinkler is Open Type sprinbkler and for Deluge System.
1- Body: Brass
2- Working Pressure: 0.35Mpa
3- Size: NPT or R1/2", 3/4", 1"
4- K Factor: 16/21/38/34/42/50/57/64/80/115
5- Spray Angle: 90/120/150
6- Finished: Brass or Chorme Plated, White
==============================================================
Other Type Sprinklers' Specification:
Upright - Pendent - Horizontal Sidewall - Concealed Pendent
Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response
Thread Size [Optional]: NPT1/2 or R1/2
Nominal Orifice Size: 1/2 Inch
Nominal K-Factor: 5.6 (U. S. )/80 (metric)
Max. Working Pressure: 175 psig/1.2 mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)
Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)
Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated
Escutcheon Finish: Chrome Plated or Color Coated In Any Color
WALTER-FSV Company produce & supply Upright Fire Sprinkler, Pendent Fire Sprinkler, Sidewall Fire Sprinkler, ESFR Fire Sprinkler, Spary Nozzle, Impact Fire Sprinkler Nozzle, Concealed Fire Sprinkler.
