Water Curtain Spray Window Nozzle
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou, Jiangsu |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description

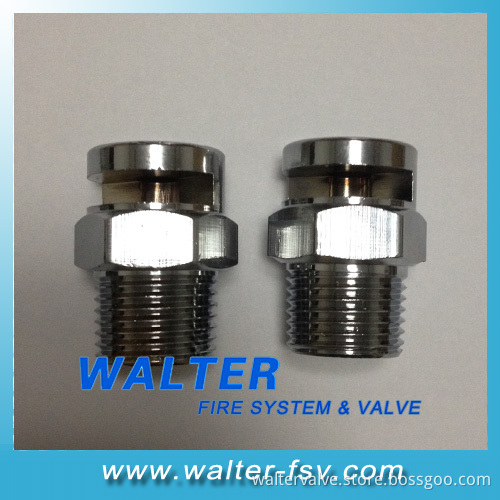

Water Curtain Spray Window Nozzle
Window Type Drencher Sprinkler Head is Open Type sprinbkler and for Deluge System.
1- Body: Brass
2- Glass bulb: Job brand or YD brand (3mm or 5mm diameter)
3- Size: NPT or R1/2", 3/4", 1"
4- K Factor: K25/K40/K52/K80/K115 MIN
5- Finished: Brass or Chorme Plated, White
==============================================================
Other Type Sprinklers' Specification:
Upright - Pendent - Horizontal Sidewall - Concealed Pendent
Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response
Thread Size [Optional]: NPT1/2 or R1/2
Nominal Orifice Size: 1/2 Inch
Nominal K-Factor: 5.6 (U. S. )/80 (metric)
Max. Working Pressure: 175 psig/1.2 mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)
Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)
Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated
Escutcheon Finish: Chrome Plated or Color Coated In Any Color
WALTER-FSV Company produce & supply Upright Fire Sprinkler, Pendent Fire Sprinkler, Sidewall Fire Sprinkler, ESFR Fire Sprinkler, Spary Nozzle, Impact Fire Sprinkler Nozzle, Concealed Fire Sprinkler.
Window Type Drencher Sprinkler Head is Open Type sprinbkler and for Deluge System.
1- Body: Brass
2- Glass bulb: Job brand or YD brand (3mm or 5mm diameter)
3- Size: NPT or R1/2", 3/4", 1"
4- K Factor: K25/K40/K52/K80/K115 MIN
5- Finished: Brass or Chorme Plated, White
==============================================================
Other Type Sprinklers' Specification:
Upright - Pendent - Horizontal Sidewall - Concealed Pendent
Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response
Thread Size [Optional]: NPT1/2 or R1/2
Nominal Orifice Size: 1/2 Inch
Nominal K-Factor: 5.6 (U. S. )/80 (metric)
Max. Working Pressure: 175 psig/1.2 mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)
Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)
Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated
Escutcheon Finish: Chrome Plated or Color Coated In Any Color
WALTER-FSV Company produce & supply Upright Fire Sprinkler, Pendent Fire Sprinkler, Sidewall Fire Sprinkler, ESFR Fire Sprinkler, Spary Nozzle, Impact Fire Sprinkler Nozzle, Concealed Fire Sprinkler.
