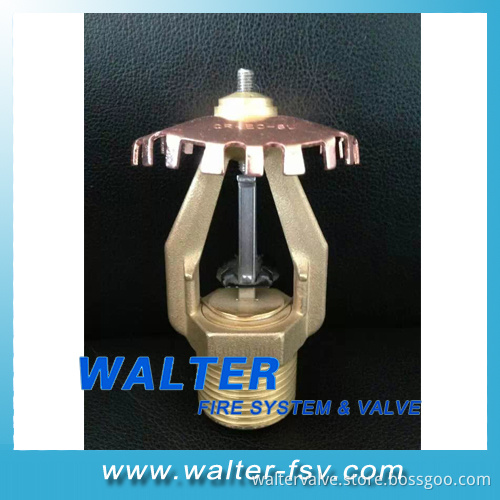

Extended Coverage Upright Sprinklers
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou, Jiangsu |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Extended Coverage Fire Sprinklers is fast response, extended coverage control mode density area (CMDA) Sprinkler for storage application.
Specification:
1- Maximum Working Pressure: 175PSI(12.1 Bar)
2- Pipe Thread Connection: 1" NPT/ISO 7-R1
3- Temperature Rate: 74° C/101° C
4- Maximum Coverage Area:
Upright: 18 m²
Pendent: 14 m²
5- Finish: Natural Brass or Chromed
6- Fusible Link Assembly: Solder, Nickel
7- K Factor: 363 (25)
Other Type Sprinkler Specification:
Upright - Pendent - Horizontal Sidewall - Concealed Pendent
Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response
Thread Size [Optional]: NPT1/2 or R1/2
Nominal Orifice Size: 1/2 Inch
Nominal K-Factor: 5.6 (U. S. )/80 (metric)
Max. Working Pressure: 175 psig/1.2 mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)
Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)
Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated
Escutcheon Finish: Chrome Plated or Color Coated In Any Color
WALTER-FSV Company produce & supply Upright Fire Sprinkler, Pendent Fire Sprinkler, Sidewall Fire Sprinkler, ESFR Fire Sprinkler, Spary Nozzle, Impact Fire Sprinkler Nozzle, Concealed Fire Sprinkler.
Specification:
1- Maximum Working Pressure: 175PSI(12.1 Bar)
2- Pipe Thread Connection: 1" NPT/ISO 7-R1
3- Temperature Rate: 74° C/101° C
4- Maximum Coverage Area:
Upright: 18 m²
Pendent: 14 m²
5- Finish: Natural Brass or Chromed
6- Fusible Link Assembly: Solder, Nickel
7- K Factor: 363 (25)
Other Type Sprinkler Specification:
Upright - Pendent - Horizontal Sidewall - Concealed Pendent
Bulb Nominal Dia. & Response: 5mm, Standard Response or 3mm, Quick Response
Thread Size [Optional]: NPT1/2 or R1/2
Nominal Orifice Size: 1/2 Inch
Nominal K-Factor: 5.6 (U. S. )/80 (metric)
Max. Working Pressure: 175 psig/1.2 mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500psig (3.4 mpa)
Min. Operating Pressure: 7 psig/0.048 mpa (0.48 bar)
Sprinkler Finish [Optional]: Natural Brass, Chrome Plated or White Color Coated
Escutcheon Finish: Chrome Plated or Color Coated In Any Color
WALTER-FSV Company produce & supply Upright Fire Sprinkler, Pendent Fire Sprinkler, Sidewall Fire Sprinkler, ESFR Fire Sprinkler, Spary Nozzle, Impact Fire Sprinkler Nozzle, Concealed Fire Sprinkler.
