Cvkr Silent Check Valve Dn350
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou, Jiangsu |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description

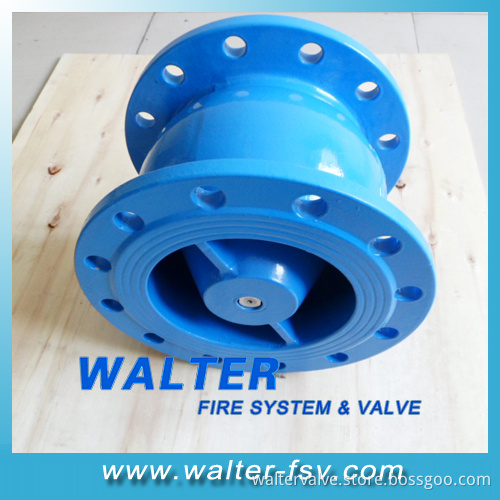

Our Silent Check Valve is desgin with BS EN 1074-3 or BS EN 12334 or BS 5163 Standard. The silent check valve have advantage as below:
- Reasonable and Streamlined Design
- Small nosize for direct flow or backflow
- 0.2 Bar Head Loss
- Integral body and flow guide
- Disc with full rubber coated
1- Body/Bonnet: GGG40/50 2- Seat/Stem/Spring: SS304
3- Bushes: C61900 4- DISC: GGG40/50 + EPDM Coating
5- Epoxy Resin coating internal & external, thickness above 300 micron
6- Work pressure: PN10/16/25; Size range: 2" to 24"
7- Connection acc. To EN1074, BS5163, ISO 7259
Silent Check Valve size from DN50 - 600, Material D. I Or S. S.
Walter-FSV Company also provide OEM or ODM for GATE VALVE, BUTTERFLY VALVE, CHECK VALVE, PRESSURE REDUCING VALVE, FLOAT CONTROL VALVE, FIRE HOSE AND FIRE SPRINKLERS.
- Reasonable and Streamlined Design
- Small nosize for direct flow or backflow
- 0.2 Bar Head Loss
- Integral body and flow guide
- Disc with full rubber coated
1- Body/Bonnet: GGG40/50 2- Seat/Stem/Spring: SS304
3- Bushes: C61900 4- DISC: GGG40/50 + EPDM Coating
5- Epoxy Resin coating internal & external, thickness above 300 micron
6- Work pressure: PN10/16/25; Size range: 2" to 24"
7- Connection acc. To EN1074, BS5163, ISO 7259
Silent Check Valve size from DN50 - 600, Material D. I Or S. S.
Walter-FSV Company also provide OEM or ODM for GATE VALVE, BUTTERFLY VALVE, CHECK VALVE, PRESSURE REDUCING VALVE, FLOAT CONTROL VALVE, FIRE HOSE AND FIRE SPRINKLERS.
