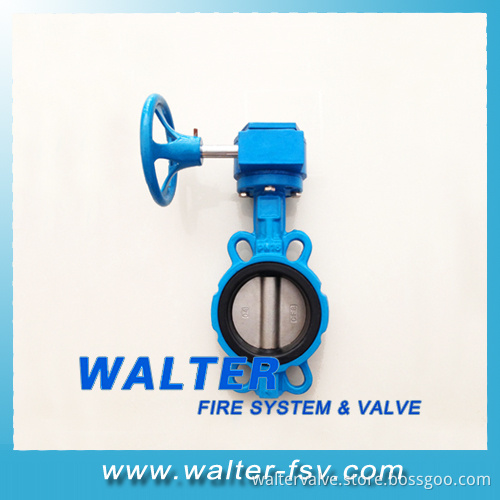

Wafer Type Butterfly Valve

Wafer Type Butterfly Valve
1- Body: Ductile Iron GGG40/50 or Cast Iron GG25
2- Spindle: SS420/SS431/SS416
3- Disc: Ductile Iron, Cast Iron. SS304 (CF8) Stainless steel
4- Seat: EPDM or PTFE
5- Pin: Stainless Steel
6- Epoxy Resin coating internal & external, thickness above 250 micron
7- Connection: Wafer type, lug type, flange type
8- Work pressure: PN10/16; Size Range: 2" to 72 "
9- Design Standard: DIN, EN558-1, API609; Top flange: ISO 5211;
10- Operate: Handwheel or Worm Gear
Suzhou Walter Flow Control Equipment Co., Ltd. Which is a professional company and specialized in fluid equipment & firefighting equipment field. We are and always fashioning our long time business relationship from the advanced technology, excellent quality and good service.
Walter supply FM Approved, UL Listed, CE and relevant certificate products in Water Treatment Systems, Firefighting Project, High Buildings, Oil and Chemical Industry field.
Valve Products:
Gate Valve, Butterfly Valve, Check Valve, Ball Valve, Automatic control valves, Global Valve, Knife Gate Valve, Strainer, Flange and Pipe Fittings
Firefighting Products:
Firefighting Sprinkler System ( fire sprinkler, wet alarm valve, deluge valve, water flow detector, gate valve, butterfly valve etc...), Foam Fire Extinguishing Systems ( CO2 fire extinguishing equipment, pressure foam proportioning device ), Air Fire Extinguishing Systems ( FM200/HFC-227ea Systems ) and Fire Hydrant, Fire Hose, Fire Monitor etc;
Material: Cast Iron, Ductile Iron, WCB, Stainless Steel.
Cooperation to create value, Walter always for the sake of customer, Choose Us, Reap Success.
For more information, please contact us directly
