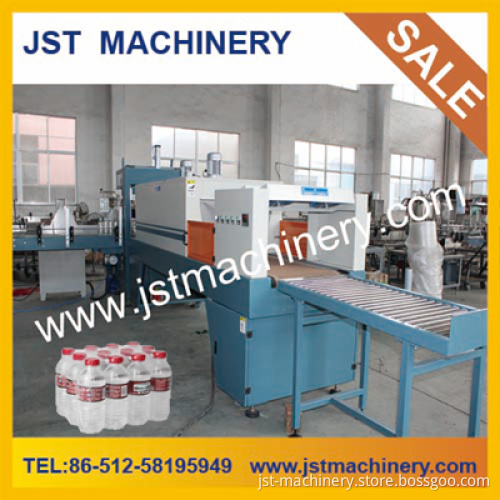

PE Film Bottles Packaging Machine (JST-14M)

PE film bottles packaging machine (JST-14M)

PE film bottles packaging machine description:
The automatic PE film bottles packaging machineis the new type Bottle packaging plant developed by our company according to domestic and abroad similar machines' advantage. It applies widely for combination packing such as beverage, food, medicine and chemical products, etc. It does not adopt salver and does not need box. It can pack perfectly no matter square, round or ellipse bottle. Ocular effect is good and packing cost is low. The automatic PE film packaging machine adopts novel optimizing design and PLC autocontrol from jst machinery, Man-machine conversation track. And orientation is exact. The following pack entering state stops bottle lack, bottle collapse, which has advantage of agile adjustment and beautiful appearance. Adjustable heat wind recycling structure applies all heat shrink wrapping (include color printing). Film changing is easy and fast. It has malfunction alarm and complete lock-stopping function and running is reliable, which gives firm assurance for constant quality and long time continuous prodction.
The PE film packaging machine is made of high quality steel and stainless steel, which has advantage of compact structure, long life-span and low energy consumption. The new type Full automatic wrapping line with patent is the preferred matching equipment for beverage bottle filling line.

Technical Parameter of PE film bottles packaging machine:
Electrical source: AC 380V/220V 50HZ
Maximum power: 18KW
Working air pressure: 0.6 MPa
Air compressor requirement: Exhaust pressure: 0.8MPa, flux: 0.25m3/min
All kinds of thermal shrinkage film for example: PE, PP, PVC, POF
Width of wrapping film: ≤ 600mm
Thickness of wrapping film: 0.03-0.15mm
Feeding conveyor height: 920mm(adjustable)
Length of feeding conveyor: 2600mm
Machine brand: Jst machinery
Outlook dimension of equipment: 5500*3200*2100 mm
Total Weight of equipment: 1200kg
Speed: 0-14 groups/minute

After-sales service for PE film bottles packaging machine:
We will send one professional engineer to install the Automatic bottle packaging machine, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Machine guarantee time: 12 months

FAQ for PE film bottles packaging machine
1. What kind of bottle will you pack?
2. What is the capacity(per hour) you want?
3. How many bottles in a group? 3*4or 4*6 or? ?
4. Sole machine or whole production line? :
