Water Bottle Washing Filling Capping Machine 3 in 1

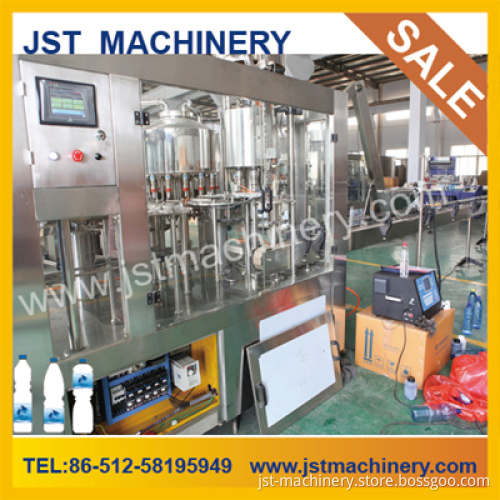

Water bottle washing filling capping machine 3 in 1
The automatic water bottle washing filling capping machine 3 in 1 is mainly used for filling pure or mineral or still water or flavor water. Water bottling machine 3 in 1 combines rinsing and filling and capping as one automatic body, it is called three in one triblock water filling equipment, and the JST company filling machine is suitable for pet bottle or other plastic bottles. The micro-pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
The water filling machine operation is automatic, can be controlled by touch screen and PLC. All is from Siemens brand.
Water bottle washing filling capping machine main components:
1) driving system;
2) bottle-loading system;
3) bottle-rinsing system;
4) handing-over system between rinsing and filling;
5) filling system;
6) handing-over system between filling and capping;
7) capping system;
8) cap-unscrambling system;
9) bottle-unloading system;
10) frame;
11) electrical system.
12)JST company spare parts.
Water filling machine 3 in 1 parameter:
1) model: CGF16-16-5
2) name: Rinsing, filling & capping machine
3) rinsing heads: 16
Filling heads: 16
Capping heads: 5
4) capacity: 5000bottle per hour (for 500ml bottle)
5) dimension: 2500mm (length)*2050mm (width)* 2200mm (height)
6) suitable bottle: Pet (sample provided by customer)
Diameter range: φ 50mm_φ 115mm
Height range: 160mm_320mm
7) suitable cap: Plastic anti-theft
8) frequency converter: Mitsubishi
9) main motor: 3.5kw
10) rinsing water pressure: 0.06 mpa < P ≤ 0.2 mpa
11) weight: 2500kgs
Water filling machine 3 in 1 after-sales service:
We will send one professional engineer to install the whole line for you, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Machine guarantee time: 12 months
FAQ for machines
1. What kind of products will you produce?
2. What is the capacity(per hour) you want?
3. What kind of package, plastic bottle, glass bottle: Volume, height, neck diameter, diameter of bottle or other please inform us of details.
4. Sole machine or whole production line?
