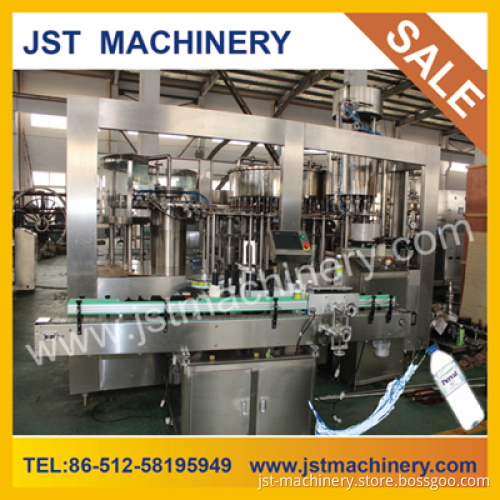

Rotary Automatic Pure Water Bottle Beverage Machine for 18000 Bph

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T, Western Union

Product Description

Rotary automatic pure water bottle beverage machine for 18000 bph

The automatic pure water beverage machine is mainly used for filling pure or mineral water. It combines rinsing and filling and capping as one automatic body ,it is called 3 in 1 water beverage machine ,and the filling machine is suitable for pet bottle or other plastic bottles. The micro-pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
The water filling machine operation is automatic ,can be controlled by touch screen and PLC.All is from Siemens brand .

rotary bottle beverage machine main components:
1) driving system;
2) bottle-loading system;
3) bottle-rinsing system;
4) handing-over system between rinsing and filling;
5) filling system;
6) handing-over system between filling and capping;
7) capping system;
8) cap-unscrambling system;
9) bottle-unloading system;
10) frame;
11) electrical system.

Parameter for water bottle machine
1) model: CGF40-40-12
2) name: Rinsing, filling & capping machine
3) rinsing heads: 40
Filling heads: 40
Capping heads: 12
4) capacity:18000bottle per hour (for 500ml bottle)
5) dimension: 5500mm (length)*2200mm (width)* 2200mm (height)
6) suitable bottle: Pet (sample provided by customer)
Diameter range: φ 50mm_φ 115mm
Height range: 160mm_320mm
7) suitable cap: Plastic anti-theft
8) frequency converter: Mitsubishi
9) main motor: 6.5kw
10) rinsing water pressure: 0.06 mpa < P ≤ 0.2 mpa
11) weight: 6000kgs

Machine detail photos :

Rotary beverage machine rinser

Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts JST original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angleensures to wash all side of the bottle, and can save the water.

automatic beverage machine filler

Filling machinery design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design).The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck,it starts to fill.Bottle is conveying by the wheel in the filling part.

automatic pure water machine capper

Screw capping machine is most precision part in the 3-1 machine,it has a big influence to the goods stability and defective rate. our screw capping has following feature.

JST import of advanced technology of screw capping,improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. Thepower of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

Machine detail photos :

Workers working photos :
Rotary Automatic Pure Water Bottle Beverage Machine for 18000 Bph

Package photos for all the machines :

Machine after-sales service:
We will send one professional engineer to install the whole line for you ,but you should pay him USD 60 / DAY as salary ,also include his return tickets ,room ,food and visa fee.
Machine guarantee time : 12 months

FAQ for machines
1.What kind of products will you produce ?
2. What is the capacity(per hour) you want ?
3. What kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details .
4. Sole machine or whole production line?
