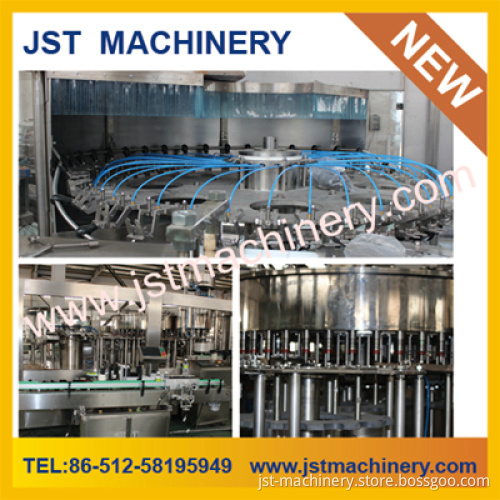

Automatic 3-in-1 Triblock Drinkable Water Filling Machinery

   3 in 1 automatic triblock drinkable Water Filling Machinery

Water fillinng machinery Description

CGF series 3 in 1 drinkable water filling machinery is a kind of professional PET bottle 3 in 1 triblock drinkable water filling machinery from JST company. integrator for no-gassy beverage. It is multifunctional which can be used for washing, filling and capping. It is a kind of advanced drinkable water filling machine integrator which is innovated in following the process requirements of filling Pure water, Mineral water, wine and etc based on the importing and assimilating the foreign advanced technology.

Drinkable Water Filling Rinser

Water filling machinery rinser part:Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

Rinsing machine adopts JST original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angleensures to wash all side of the bottle, and can save the water.

Drinkable Water Filling Filler

Water filling machinery filler part :Filler design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design).The filling valve material is SUS304.The filling system has liquid level automatic control.Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck,it starts to fill.Bottle is conveying by the wheel in the filling part.

Drinkable Water Filling Capper

Water filling machinery capper part:Screw capping machine is most precision part in the 3-1 machine,it has a big influence to the goods stability and defective rate. our screw capping has following feature.

1)JST import of advanced technology of screw capping,improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. Thepower of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.

2) In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.
