Product Description

CE approved glass bottle juice filling machine for 3000BPH

CE approved glass bottle juice filling machine for 3000BPH description:

The automatic glass bottle juice filling machine is mainly used for filling hot juice or tea drink. It combines rinsing and filling and capping as one automatic body, it is called 3 in 1 juice bottling machine, it is suitable for PET bottle or glass bottle or other plastic bottles. The micro-negative pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON or Siemens for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.

Glass bottle juice filling machine components:
1) driving system;
2) bottle-loading system;
3) bottle-rinsing system;
4) handing-over system between rinsing and filling;
5) filling system;
6) handing-over system between filling and capping;
7) capping system;
8) cap-unscrambling system;
9) bottle-unloading system;
10) frame;
11) electrical system.

Glass bottle juice filling machine parameters:
1) Model: RCGF 16-12-6
2) Name: Rinsing, filling & capping machine
3) Rinsing heads: 16, Filling heads: 12, Capping heads: 6
4) Capacity: 3000 bottle per hour (for 500ml bottle)
5) Dimension: 3000mm(length)*2050mm(width)* 2200mm(height)
6) Suitable bottle: PET (sample provided by customer)
Diameter range: Φ 50mm— Φ 115mm
Height range: 160mm— 320mm
7) Suitable cap: Plastic anti-theft
8) Frequency converter: Mitsubishi
9) Main motor: 3kw
10) Rinsing water pressure: 0.06 MPa < P ≤ 0.2 MPa
11) Weight: 4000kg

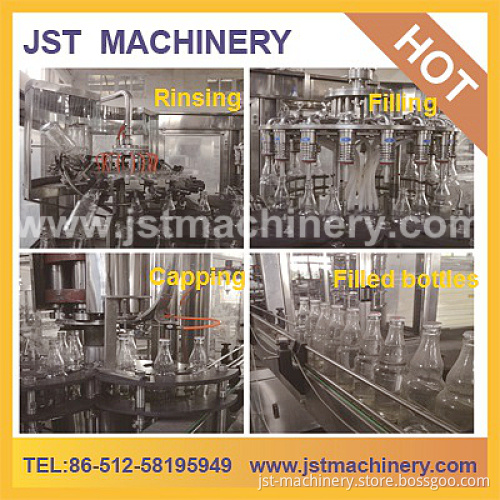

Glass bottle juice filling machine photos:

Washing Part:
CE Approved Glass Bottle Juice Filling Machine for 3000bph

Filling Part:

CE Approved Glass Bottle Juice Filling Machine for 3000bph

Capping Part:
CE Approved Glass Bottle Juice Filling Machine for 3000bph

Glass bottle juice filling macine 3 in 1 After sales service:

We will send one professional engineer to install the whole line for you, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Machine guarantee time: 12 months

FAQ for machines
1. What kind of products will you produce?
2. What is the capacity(per hour) you want?
3. What kind of package, plastic bottle, glass bottle: Volume, height, neck diameter, diameter of bottle or other please inform us of details.
4. Sole machine or whole production line?
