Automatic Three in One Glass Bottle Juice Filling Machine for 5000 Bottles Per Hour

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Automatic three in one glass bottle juice filling machine

The automatic fresh juice filling machine is mainly used for filling fruit juice or tea drink. It combines rinsing,and filling and capping as one automatic body ,it is called 3 in 1 juice filling machine ,it is suitable for glass bottle juice / tea filling or other shape bottles .The micro-negative pressure filling technology from JST company is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON or Siemens for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.

PET bottle ice tea filling machine:
1) driving system;
2) bottle-loading system;
3) bottle-rinsing system
4) handing-over system between rinsing and filling;
5) filling system;
6) handing-over system between filling and capping;
7) capping system;
8)JST company spare parts
9) cap-unscrambling system;
10) bottle-unloading system;
11) frame;
12) electrical system.

Juice filling machine main parameters
1) Model: RCGF 18-18-6
2) Name: Rinsing, filling & capping machine
3) Sterilizer water rinsing heads : 18 ;
Pure water Rinsing heads: 18, Filling heads:   18,Capping heads:   6
4) Capacity:      5000 bottle per hour (for 500ml bottle)
5) Dimension:    3500mm(length)*2050mm(width)* 2100mm(height)
6) Suitable bottle: PET (sample provided by customer)
Diameter range:  Φ50mm—Φ115mm
Height range:     160mm—320mm
7) Suitable cap:       plastic anti-theft
8) Frequency converter:     Mitsubishi
9) Main motor:     3.5kw
10) Rinsing water pressure:   0.06 MPa < P ≤ 0.2 MPa
11) Weight:        3500kg

Glass bottle juice filling machine detail photos :
Glass bottle rinsing :

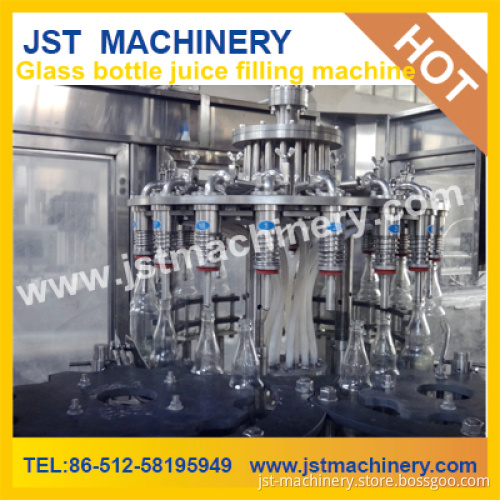

Glass bottle juice filling :
Glass bottle crown capping :

After sales service :

We will send one professional engineer to install the whole glass bottle juice filling line for you ,but you should pay him USD 60 / DAY as salary ,also include his return tickets ,room ,food and visa fee.

Machine guarantee time : 12 months

FAQ for machines

1.What kind of products will you produce ?

2. What is the capacity(per hour) you want ?

3. What kind of package , plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details .

4. Sole machine or whole production line?
