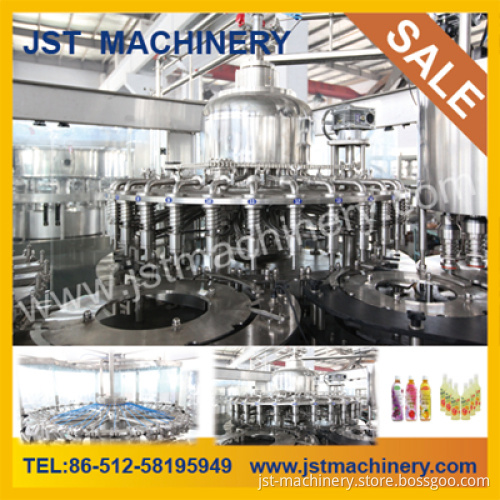

Automatic Fruit Juice Filling Machinery for Bottle

Automatic Fruit Juice Filling Machinery For Bottle

The automatic juice filling machinery is mainly used for filling fruit juice or tea drink. It combines rinsing and filling and capping as one automatic body, it is called three in one, , it is suitable for PET bottle filling or other plastic bottles. The micro-negative pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON or Siemens for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle from JST company. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. The machine fro JST company, for bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.

Automatic Fruit Juice Filling Machinery For Bottle main components:
1) driving system;
2) bottle-loading system;
3) bottle-rinsing system;
4) handing-over system between rinsing and filling;
5) filling system;
6) handing-over system between filling and capping;
7) capping system;
8) cap-unscrambling system;
9) bottle-unloading system;
10) frame;
11) electrical system.

Automatic Fruit Juice Filling Machinery For Bottle parameters
1) Model: RCGF 18-18-6
2) Name: Rinsing, filling & capping machine
3) Rinsing heads: 18, Filling heads: 18, Capping heads: 6
4) Capacity: 5000 bottle per hour (for 500ml bottle)
5) Dimension: 3000mm(length)*2050mm(width)* 2200mm(height)
6) Suitable bottle: PET (sample provided by customer)
Diameter range: Φ 50mm— Φ 115mm
Height range: 160mm— 320mm
7) Suitable cap: Plastic anti-theft
8) Frequency converter: Mitsubishi
9) Main motor: 3kw
10) Rinsing water pressure: 0.06 MPa < P ≤ 0.2 MPa
11) Weight: 4000kg

Automatic Fruit Juice Filling Machinery For Bottle After sales service:
We will send one professional engineer to install the whole line for you, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Juice Filling Machine guarantee time: 12 months

How to get your suitable machine or production water filling line?
Enquiry: Contact us by email, phone call, fax, Instant Messenger and let us know your enquiry.
Discussion: Specify the items you desire, confirm specification
Quotation: Prices offered and accepted.
Place order as per contract or discussion.
Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.
Payment settled.
Order completed under our arrangement.
Goods shipped as per contracted term.
Goods arrive at local port or warehouse, depending on contracted term.

Any question about this machine, contact with us please, sincere service for you and welcome to JST Katherine.
