Bottled Fruit Juice Filling Packing Machine

Bottled fruit juice filling packing machine
Apple fruit juice filling packing machine description:

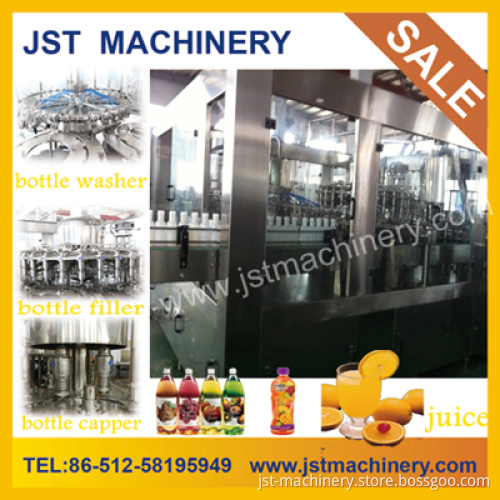

The automatic bottled juice filling machine is mainly used for filling hot juice or tea drink. It combines rinsing and filling and capping as one automatic body, it is called 3 in 1 juice bottling machine from jst machinery, it is suitable for PET bottle or glass bottle or other plastic bottles. The micro-negative pressure filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON or Siemens for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
Juice filling packing machine 3 in 1 components:
1) driving system;
2) bottle-loading system;
3) bottle-rinsing system;
4) handing-over system between rinsing and filling;
5) filling system;
6) handing-over system between filling and capping;
7) capping system;
8) cap-unscrambling system;
9) bottle-unloading system;
10) frame;
11) electrical system.
Bottled juice be packing machine parameters
1) Model: RCGF 16-12-6
2) Name: Rinsing, filling & capping machine
3) Rinsing heads: 16, Filling heads: 12, Capping heads: 6
4) Capacity: 3000 bottle per hour (for 500ml bottle)
5) Dimension: 3000mm(length)*2050mm(width)* 2200mm(height)
6) Suitable bottle: PET (sample provided by customer)
Diameter range: Φ 50mm— Φ 115mm
Height range: 160mm— 320mm
7) Suitable cap: Plastic anti-theft
8) Frequency converter: Mitsubishi
9) Main motor: 3kw
10) Rinsing water pressure: 0.06 MPa < P ≤ 0.2 MPa
11) Weight: 4000kg
Fruit juice filling packing machine After sales service:
We will send one professional engineer to install the whole line for you, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Machine guarantee time: 12 months
FAQ for packing machines
1. What kind of products will you produce?
2. What is the capacity(per hour) you want?
3. What kind of package, plastic bottle, glass bottle: Volume, height, neck diameter, diameter of bottle or other please inform us of details.
4. Sole machine or whole production line?
