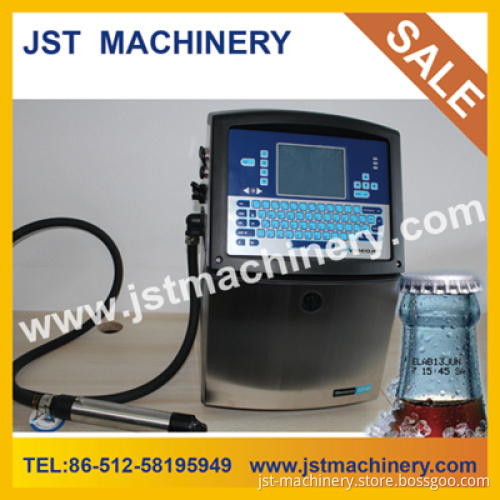

Bottle Data Printer Machine

Bottle data printer machine

Bottle data printer machine is beverage, food, chemistry, medicine ect industry facility. It is videojet 1210 series small kind videojet super product. No pollute, no waste, no make mistake.
The bottle data printer machine is equipped with the first intelligent ink cartridge, which is a function of the ink bottle with a microchip, can determine the ink installed correctly, to prevent ink type error or solvent and ink installation errors. Intelligent cartridge shape is unique, can completely run out of ink, not a little residual, thus further achieve cost saving. The needle diaphragm design makes the operator need not manual injection ink, so as to prevent ink overflow and waste from jst machinery.
Line speed:
1-3 line ink jet printer, speed can reach 914 feet each minute (278.6/min) (each feet 10 code, single line ink printer)
Can choose point
Single-line: 5*5, 5*7, 7*9, 8*12, 11*16, 17*24, 34*34
Double line: 5*5, 5*7, 7*9, 8*12, 11*16
Three line: 5*5, 5*7, 7*9
Date connector
RS232, RS485, via RS232, via USD to do information managment
Circustance:
IP55 (IP65 can choose, no need factory gas source); Stainless steel cabinet
Humidity and temperature range: 32F to 122F (0-50 C)
0-90% corrspond humidity (non-condensation)
Electricity requirement:
100-120/200-240VAC, 50-60Hz
Weight: No package and weight: 21kg
Can choose:
IP65 (no need factory gas source)
Used for high humidity dry air set (need factory air source)
Used for long stance choose and input output 60 or 70 mirco nozzle
Food style
90 angle jet nozzle
All the kind of matching
Injet head
Heating injet
Air pressure
Diameter: 1.63" (41.3mm)
Length: 10, 62" (269.8mm).
Line tyoe bar code:
UPC A&E, EAN 8&13; Code 128 A, B&C;
UCC/EAN 128; Coce 39: Interleaved 2 of 5
Datamatrix Code:
10*10, 12*12, 14*14, 16*16, 18*18, 20*20, 24*24, 34*34;
Code height:
Can choose 0.079'(2mm)-0.04'(10mm), according to word.
Ink jet space:
Best: 0.0472' (12mm)
Range: 0.197' (5mm)-00591' (15mm)
Button:
Film type touch screen feedback, include 72 letter, number and special function button.
Language:
English, Arab, Denmark, Chinese, Spanish...
After-sales service for date code printing machine:
We will send one professional engineer to install the whole PE film Bottle wrapping equipment for you, but you should pay him USD 60 / DAY as salary, also include his return tickets, room, food and visa fee.
Machine guarantee time: 12 months
FAQ for bverage bottle date printing machine:
1. Will you print code or date?
2. Will you need ink or without ink?
3. Will print it on the bottle or pipe or any ther goods?
4. Will you print one line or two lines or three lines?
