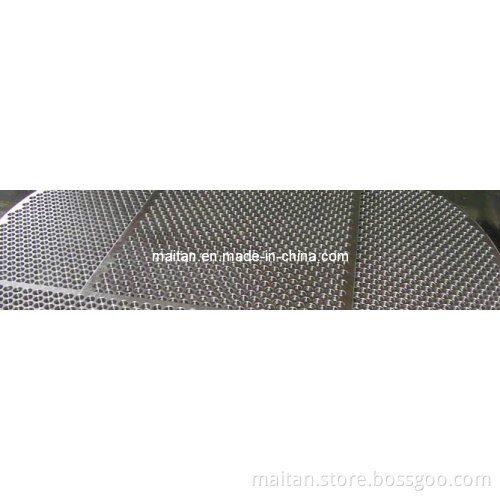

Baffle for Heat Exchanger (Titanium, Nickel, Stainless Steel)

TONGJI Fabrication

We can supply kinds of baffle and support plates which machined exactly according client's drawings and specifications by CNC drilling machines. Any size and shape of baffle plate used to make a TEMA or even Non-TEMA type can be provide.

Round, half round, rectangular or square plates can be programmed and drilled.

Baffles are components of shell and tube heat exchangers which are used to support and fix the tubes in a defined position. There are different types of baffle configurations. The most popular type is the perforated plate in the form of a segmented circle. The segmental baffles are arranged so that the segmented section faces are disposed opposite to each other along a bundle of tubes at specified interval. No tube in window(NTIW) baffles, Helically- shaped baffles, full support baffles and other types that can be fabricated in our company.
