Elevator Guide Clip T1 T2 T3 T4 T5

We have T1&T2 &T3 & T4 & T5 types of guide clips with high quality.
All clips for T type elevator guide rail.
We supply Elevator Guide Rails and Elevator Parts.
1.Details:- T45/A:45*45* 5mm T50/A: 50*50*5mm T70/B: 70*50*15.88mm T70-1/B: 70*65*9mm T75-3/B: 75*62*10mm T78/B: 78*56*10mm T82/B: 82.5*68.25*9mm T89/B: 89*62*15.88mm T90/B: 90*75*16mm T114/B: 114*89*16mm T127-1/B: 127*88.9*15.88mm T127-2/B: 127*88.9*15.88mm T140-1/B: 140*108*19mm T140-2/B: 140*102*28.6mm T140-3/B: 140*127*31.75mm TK3:75*55*10mm TK3A:75*55*10mm TK5:87*60*16.4mm TK5A:78*60*16.4mm
2, We passed the ISO9001:2000 Certificate and produce standard is ISO7465:2001
3, Material:Q235A steel
4, Package: T45/A, T50/A,TK3, TK5, TK3A, TK5A is 50 pieces/bale, T70-1/B, T70/B, T75-3/B, T78/B, T82/B, T89/B, T90/B is 20 pieces/bale,T114/B, T127-1/B, T127-2/B is 10 pieces/bale. We use sheath protect the end of the guide rail and iron plate also protect the guide rail.and the coating with plastic cloth.About the 50 bars/bundle, we use steel bracket fix the guide rail because the weight is heavy.By that package it can keep goods safty

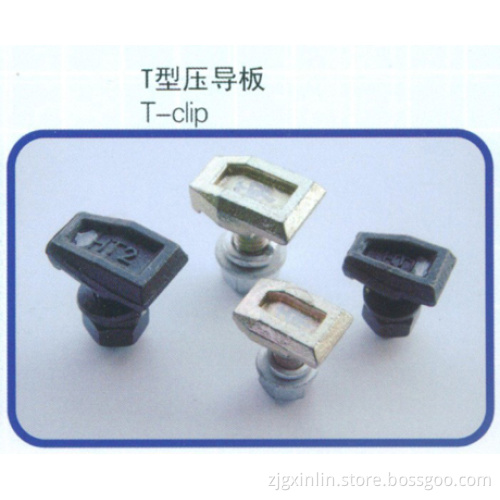

5, T-Clips Forged rigid guide rail clamping system. Recommended for application where guide rail stack movement is not expected. These clips come complete with threaded shank and nut. T-Clips are available both in burnished and zinc-coated finishing. T1(M10 , 32mm) use for T45/A, T50/A  T2(M12, 39mm) use for T70-1/B, T75-3/B T78/B, T82/B  T3(M14, 45mm) use for T89/B, T90/B  T4(M16, 50mm) use for T114/B, T127-1/B, T127-2/B  T5(M18, 55mm) use for T140-1/B, T140-2/B
6, We also can produce non-standard guide rail follow customer's requirements.
