APPLICATION:

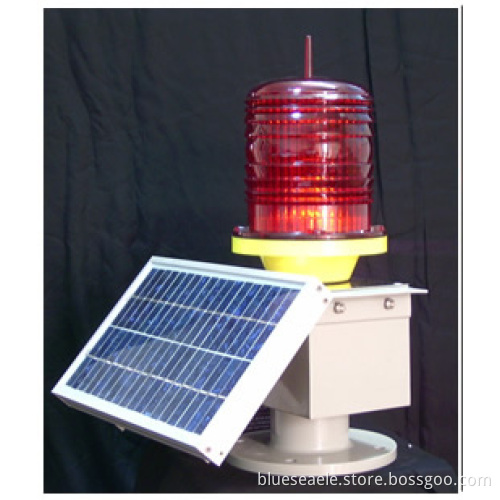

TBS-LED type silicon solar-powered aviation obstruction light mainly consists of a  70mm/90mm/122mm plastic lens, a flasher, aluminum alloy cell box and fixture, maintenance-free storage cells and a physical silicon solar panel.

The plastic lens is a fresnel lens molded with polypropylene acid plastics. This kind of lens has excellent light transmittance and is anti-sunbeam-aging. The flasher utilizes quality electronic components to form the light-control switch which controls the imported super long-life LED CMOS chip to give off  bright flash light. The lifetime of LED is 20years.

The perfect combination of high-efficiency physical silicon solar panel and high-capacity storage cells provides adequate power for the flasher to keep flashing for 10 continuous overcast and rainy days. This product doesn't require any maintenance for 3 years if used in normal conditions.

Silicon Solar Powered Aircraft Obstruction Aviation Lamp
ModelTGZ-70 LEDTGZ-90LEDTGZ-122LED
Plastic lens70mm90mm122mm
Working voltageDC: 12V(+/-)20%
Static current10mA
flash frequency20~60 times/min (adjustable)
Lighting colorRED, GREEN, BLUE, WHITE, ORANGE(RED is normal)
Lingting range>5Km(T=0.95)
light control sensitivity200LX(adjustable)
storage cell capacity12V7AH12V12AH12V7AH
Lighting under overcast and rainy weather18days20days15days
Working enviroment-40~+70
level of protectionIP65
Bottom installation specificationMax circule 180, pitch circule150mm,  Average 8-10mm hole
Lamp net weight8 kg12kg8 kg
