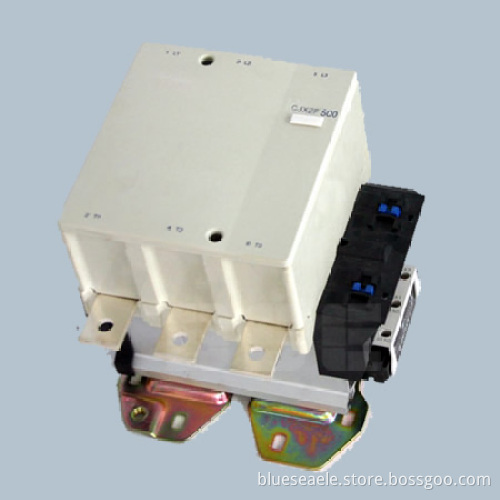

LC1-F Magnetic Contactor, AC Contactor

LC1-F series AC contactor is applicable in the circuits up to the rated voltage 1000v AC 50Hz or 60Hz, rated current 780A, for long distance breaking circuit and frequently starting or control the motor. It also can be used for the control of distribuition circuits of rated current from 200A to 1600A.

LC2-F Mechanical Interlocking Contactor is suitable for using in the circuits up to the rated voltage 1000V AC 50Hz or 60Hz, current 265A, for convertible controling the motor, It'smechanical interlocking device ensures contact. Changeover of the two convertible contactors.

The specifications as follows:
LC1-F/LC2-F115
LC1-F/LC2-F150
LC1-F/LC2-F185
LC1-F/LC2-F225
LC1-F/LC2-F265
LC1-F/LC2-F330
LC1-F/LC2-F400
LC1-F/LC2-F500
LC1-F/LC2-F630
LC1-F/LC2-F780

AC CONTACTOR SERIES:
LC1-D, LC1-DN, LC2-D, LC1-F, LC2-F, 3TF, 3TH, 3TB, 3TD, 3TP, 3RT, EH, EB, GMC, A, B, CK, S-N, S-K, SC, PAK-H, CN, M-CL, S-CL, DIL, LP1-D, LA1-DN, LA2-D, AEG, CA2-DN, CA3-DN, SMC, S-P, LC1-K, LC1-E, 3TK44, LC1-DK.
