IP65 Module Design 240W LED Street Light

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, Jiangsu, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Specification:

Model No.: STK-R3C-6-240

Rated Power: 240W

Input Voltage: AC90 ~ 305V, 47 ~ 63Hz

LED Type: CREE-XBD

LED Qty: 144pcs

LED Driver: Meanwell

Current of LED: 1000mA

Emitted Color: Cool White/Neutual White/Warm White

CCT: 6000K/5000K/4000K/3500K/3000K/2700K

Luminous Flux: 24,000 +/-5%Lm

Ra: >70/80

View Angle: X: 155 degree, Y: 90 degree

Power Factor: >0.95

IP: IP65

Dimension: 753x304x128mm

Packing Dimension: 82x42x21cm

Applications:

1. City streets and roads

2. Highways

3. Pavements

4. Squares

5. Schools

6. Parks

7. Yards and etc.

Competitive Features:

1. CE,ROHS,FCC, UL, CUL Compliane

2. High Luminous efficiency

3. Vertican and horizontal type both available

4. Fin shape heat sink stucture(better than die-casting aluminum)

5. Waterproof rank: IP65

6. ASA shell (fire-protection rating:V0~V1)+ Fin shape heat sink stucture(better than die-casting aluminum)

7. Long life-span

8. Quick connection

9. Shock and vibration resistant, more durable

10. Easy installation and low maintenance

11. 3-5 years warranty

12. No flickering, No UV, No infra-red radiation. Environment-Friendly and Healthy

13. Varieties of colors to meet the requirements of different applications

Customized Service:

All LED lights can be customized according to your drawings or requests.

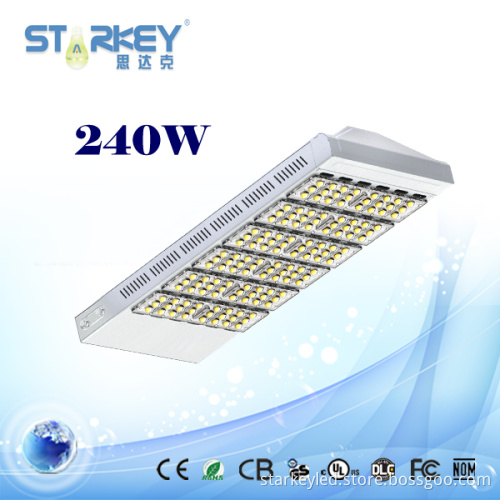

Reference Pic: IP65 Module Design 240W LED Street Light
