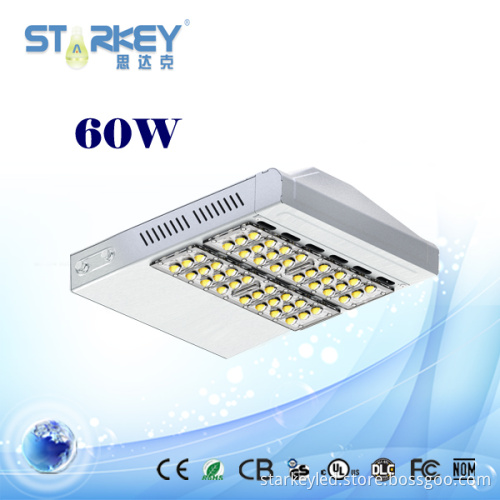

IP65 Module Design 60W LED Street Light

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, Jiangsu, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

IP65 Module Design 60W LED Street Light manufacturer/Factory

Specification:

Model No.: STK-R3C-2-060

Rated Power: 60W

Input Voltage: AC100~240V, 50 ~ 60 Hz

LED Type: CREE-XBD

LED Qty: 48pcs

LED Driver: Meanwell

Current of LED: 1000mA

Emitted Color: Cool White/Natural White/Warm White

CCT: 6000K/5000K/4000K/3500K/3000K/2700K

Luminous Flux: 6,000 +/-5%Lm

Ra: >70/80

View Angle: X: 155 degree, Y: 90 degree

Power Factor: >0.90

IP: IP65

Dimension: 385x304x128mm

Packing Dimension: 45x42x21cm

Applications:

1. City streets and roads

2. Highways

3. Pavements

4. Squares

5. Schools

6. Parks

7. Yards and etc.

Competitive Features:

1. CE,ROHS,FCC, UL, CUL Compliane

2. High Luminous efficiency

3. Vertical and horizontal type both available

4. Fin shape heat sink stucture(better than die-casting aluminum)

5. Waterproof rank: IP65

6. ASA shell (fire-protection rating:V0~V1)+ Fin shape heat sink stucture(better than die-casting aluminum)

7. Long life-span

8. Quick connection

9. Shock and vibration resistant, more durable

10. Easy installation and low maintenance

11. 3-5 years warranty

12. No flickering, No UV, No infra-red radiation. Environment-Friendly and Healthy

13. Varieties of colors to meet the requirements of different applications

Customized Service:

All LED lights can be customized according to your drawings or requests.

Reference Photo:

Model No.	STK-R3C-1-040	STK-R3C-2-060	STK-R3C-2-080	STK-R3C-3-100	STK-R3C-3-120	STK-R3C-4-150	STK-R3C-5-180	STK-R3C-5-200	STK-R3C-6-240
Rated Power(Watts)	40	60	80	100	120	150	180	200	240
Input Voltage (V)	AC100~240V, 50 ~ 60 Hz						AC90 ~ 305V, 47 ~ 63Hz
LED Qty	24pcs	48pcs	48pcs	72pcs	72pcs	96pcs	120pcs	120pcs	144pcs
CCT(K)	6000K/5000K/4000K/3500K/3000K/2700K
Luminous Flux (lm)	4,000 +/-5%	6,000 +/-5%	7,200 +/-5%	10,000 +/-5%	10,800 +/-5%	15,000 +/-5%	18,000 +/-5%	19,000 +/-5%	24,000 +/-5%
View Angle(°)	X: 155°, Y: 90°
Power Fact	>0.90	>0.90	>0.93	>0.93	>0.95	>0.95	>0.95	>0.95	>0.95
LED Type	CREE-XBD
Current of LED	1000mA
Emitted Color	Cool White/Natural White/Warm White
Ra (CRI)	>70/80
IP	IP65
Dimension of Lamp(mm)	293x304x128	385x304x128		478x304x128		569x304x128	660x304x128		753x304x128
Package (cm)	36x42x21	45x42x21		54x42x21		64x42x21	73x42x21		82x42x21
