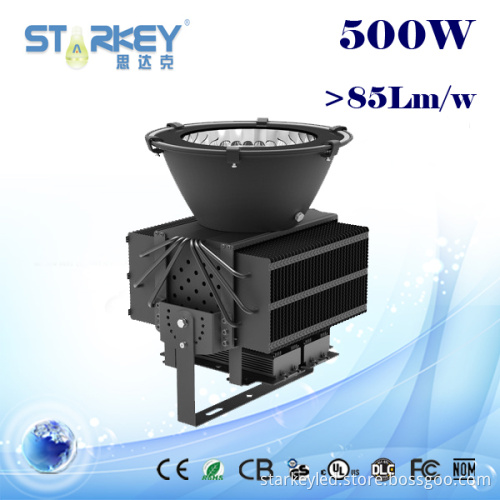

500W IP65 Dimmable Industrial LED High Bay Light

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou City, China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

BASIC TECHNICAL DATA:

Model No. STK-H2B-500

LED Brand: CREE

LED Type: XBD

LED Quantity: 280PCS (3W/PC)

Rated Power: 500W

Color Temperature: 6000K/5000K/4000K/3000K

Ra (CRI): >70 (>80)

Luminous Efficiency of Lamp: 75 - 85 Lm/W

Power Supply: Meanwell

Input Voltage: 95 ~ 305VAC // 47~63Hz

Reflectors Angle: 25°/45°/60°/90°

Dimension: Φ367*497 MM

Protection: IP65

DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 25 Degree)

500W IP65 Dimmable Industrial LED High Bay Light

DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 60 Degree)

500W IP65 Dimmable Industrial LED High Bay Light

DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 90 Degree)

500W IP65 Dimmable Industrial LED High Bay Light

Primary competitive advantages of StarkeyLED:

1. Professional LED manufacture

2. Experience technical staff

3. Quality control

4. Completive price

5. Big order offer for free shipping by express

6. Small order available

7. Top quality raw material

8. International Approval

9. Prompt delivery

10. Guarantee/warranty

11. Excellent packaging

12. Environment friendly

13. Excellent performance

14. Good service

15. Customaries design is available, free combination

Model No.	STK-H1A-070	STK-H1A-100	STK-H1A-120	STK-H1A-150	STK-H1A-180	STK-H1A-200	STK-H1A-240	STK-H1A-300	STK-H1A-400	STK-H1A-500
LED Type	Philip LUXEON TX							CREE XBD
Current of LED	1200 mA	1200 mA	1200 mA	1200 mA	1200 mA	1200 mA	1200 mA	1000 mA	1000 mA	1000 mA
LED Qty.(PCS)	36	40	45	60	72	72	90	192	280	280
CCT(K)	3000K~6500K	3000K~6500K	3000K~6500K	3000K~6500K	3000K~6500K	3000K~6500K	3000K~6500K	3000K~6500K	3000K~6500K	3000K~6500K
Ra (CRI)	>70/>80	>70/>80	>70/>80	>70/>80	>70/>80	>70/>80	>70/>80	>70/>80	>70/>80	>70/>80
Luminous Flux(Lm)	7000	9000	11000	13500	16000	18000	21000	24000	32000	36000
Power(W)	70	100	120	150	180	200	240	300	400	500
Beam Angle(°)	25°/60°/90°	25°/60°/90°	25°/60°/90°	25°/60°/90°	25°/60°/90°	25°/60°/90°	25°/60°/90°	25°/60°/90°	25°/60°/90°	25°/60°/90°
Input Voltage(V)	AC100~240	AC100~240	AC100~240	AC100~240	AC95~305	AC95~305	AC95~305	AC95~305	AC95~305	AC95~305
Protection	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Size (MM)	Φ348*340	Φ348*435	Φ348*435	Φ348*450	Φ348*450	Φ348*455	Φ348*455	Φ374*459	Φ367*497	Φ367*497
