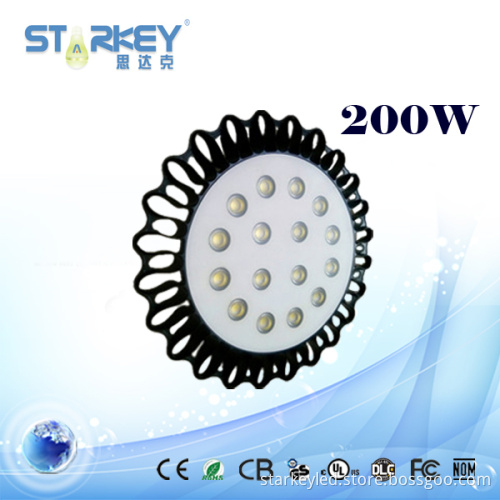

200W Industrial Factory Warehouse LED High Bay Light

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, Jiangsu, China
Payment Type:	L/C, T/T, D/P, Paypal, Money Gram, Western Union

Product Description

BASIC TECHNICAL DATA:
Model No. STK-H6F-200
Rated Power: 200W
LED Type: COB
LED Quantity: 16pcs
Beam Angle: 30° /60° /90° /120°
Color Temperature: 6000K/5000K/4000K/3000K
Ra(CRI) > 70
Luminous Flux: + 17,000 Lm
Input Voltage: AC100-240V, 50/60Hz
PF: >0.9
Materials: Aluminium + PBT
Dimension: H187*Φ 525 mm
Net Weight: 8 Kg
Color Appearance: White
Waterproof: IP65
Working Enviornment: -20~55/≤ 95%RH

DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 60 Degree)
200W Industrial Factory Warehouse LED High Bay Light

DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 90 Degree)

DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 120 Degree)

Model No.	STK-H5E-100	STK-H5E-150	STK-H5E-200
Input Voltage (V)	AC100-240/AC95-305
Rated Power(Watts)	100	150	200
LED Qty(pce)	8	12	16
CCT(K)	3000/4000/5000/6500
Ra (CRI)	>70/80
Luminous Flux (lm)	9400	13500	18000
Power Fact	>0.95
IP Rate	IP65
Dimension (mm)	Φ353*187	Φ450*187	Φ525*187
Net Weight(KG)	5.2	6.5	8
