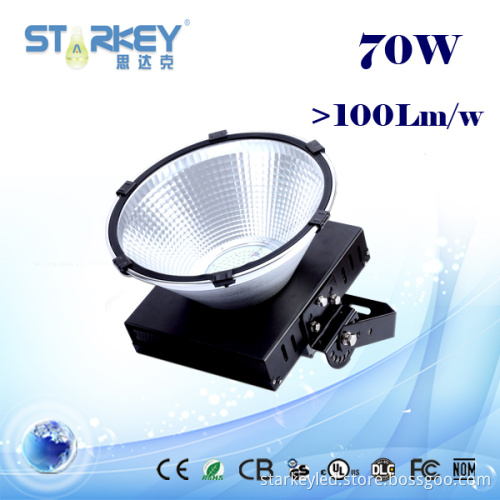

70W IP65 Dimmable Industrial Factory LED High Bay Light
  • 70W IP65 Dimmable Industrial Factory LED High Bay Light
70W IP65 Dimmable Industrial Factory LED High Bay Light

70W IP65 Dimmable Industrial Factory LED High Bay Light

Get Latest Price
Payment Type:
L/C, T/T, Money Gram, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Suzhou, Jiangsu, China
Payment Type: L/C, T/T, Money Gram, Western Union
Product Description
Product Description
BASIC TECHNICAL DATA:

Model No. STK-H2B-070

LED Brand: PHILIPS

LED Type: LUXEON SMD3737

LED Quantity: 36PCS (4W/PC)

Rated Power: 70W

Color Temperature: 6000K/5000K/4000K/3000K

Ra (CRI):  >70 (>80)

Luminous Efficiency of Lamp:  85 - 95 Lm/W

Power Supply:  Meanwell

Input Voltage: 100 ~ 240VAC // 50~60Hz

Reflectors Angle: 25°/60°/90°

Dimenison: Φ348*340 MM

Protection: IP65


DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 25 Degree)


70W IP65 Dimmable Industrial Factory LED High Bay Light

DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 60 Degree)

70W IP65 Dimmable Industrial Factory LED High Bay Light




DISTRIBUTION CURVE OF MERIDIAN
(Beam Angle is 90 Degree)

70W IP65 Dimmable Industrial Factory LED High Bay Light




Primary competitive advantages of StarkeyLED:
1. Professional LED manufacture
2. Experience technical staff
3. Quality control
4. Completive price
5. Big order offer for free shipping by express
6. Small order available
7. Top quality raw material
8. International Approval
9. Prompt delivery
10. Guarantee/warranty
11. Excellent packaging
12. Environment friendly
13. Excellent performance
14. Good service
15. Customaries design is available, free combination

Model No. LED Type Current of LED  LED
Q'ty		 Emitted color CCT(K) Luminous
Type		 CRI Efficiency
(Typ.)		 IP rate Power Input Voltage Reflectors Angle Dimension              (MM) Unit Price
STK-H2B-070 Philip LUXEON    SMD3737 1200 MA 36 Cool white          Pure white     Warm white 6000K 5000K      4000K 3000K  6300 Lm >70   >80 90% IP65 70W 100~240VAC
50 ~ 60Hz		 25°/60°/90° Φ348*340 >200pcs,  $112 >500pcs,  $110
STK-H2B-100 Philip LUXEON    SMD3737 1200 MA 40 Cool white          Pure white     Warm white 6000K 5000K      4000K 3000K  9000 Lm >70   >80 93% IP65 100W 100~240VAC
50 ~ 60Hz		 25°/60°/90° Φ348*435  >200pcs,  $157 >500pcs,  $155
STK-H2B-120 Philip LUXEON    SMD3737 1200 MA 45 Cool white          Pure white     Warm white 6000K 5000K      4000K 3000K  9000 Lm >70   >80 93% IP65 120W 100~240VAC
50 ~ 60Hz		 25°/60°/90° Φ348*435  >200pcs,  $164  >500pcs,  $162
STK-H2B-150 Philip LUXEON    SMD3737 1200 MA 60 Cool white          Pure white     Warm white 6000K 5000K      4000K 3000K  13500 Lm >70   >80 93.5% IP65 150W 100~240VAC
50 ~ 60Hz		 25°/60°/90° Φ348*450  >100pcs,  $192  >500pcs,  $190
STK-H2B-180 Philip LUXEON    SMD3737 1200 MA 72 Cool white          Pure white     Warm white 6000K 5000K      4000K 3000K  15850 Lm >70   >80 93% IP65 180W 90 ~ 305VAC
47 ~ 63Hz		 25°/60°/90° Φ348*450  >100pcs,  $215      >500pcs,  $196
STK-H2B-200 Philip LUXEON    SMD3737 1200 MA 72 Cool white          Pure white     Warm white 6000K 5000K      4000K 3000K  17000 Lm >70   >80 93% IP65 200W 90 ~ 305VAC
47 ~ 63Hz		 25°/60°/90° Φ348*455 >100pcs,  $228  >500pcs,  $225
STK-H2B-240 Philip LUXEON    SMD3737 1200 MA 90 Cool white          Pure white     Warm white 6000K 5000K      4000K 3000K  20000 Lm >70   >80 95% IP65 240W 90 ~ 305VAC
47 ~ 63Hz		 25°/60°/90° Φ348*455 >100pcs,  $248  >500pcs,  $240
STK-H2B-300 Philip LUXEON    SMD3737 1200 MA 135 Cool white          Pure white     Warm white 6000K 5000K      4000K 3000K  27000 Lm >70   >80 95% IP65 300W 90 ~ 305VAC
47 ~ 63Hz		 25°/60°/90° Φ348*525  >100pcs,  $390
>500pcs,  $380
