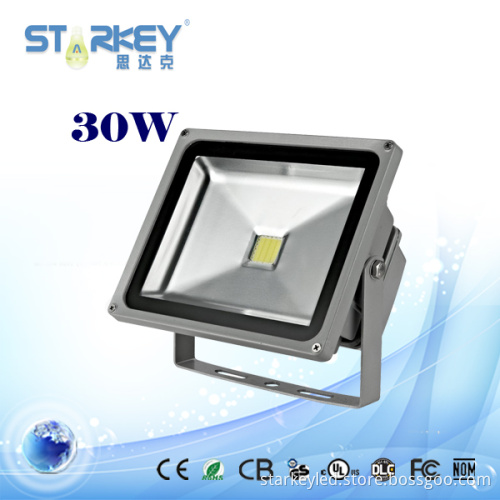

30W IP65 LED Flood Light with Epistar Chip and EMC Driver

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, Jiangsu, China
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

30W IP65 LED Flood light with Epistar Chip and EMC Driver, thick radiator

Specification:
Model No.: STK-F3C-G-030
Input Voltage: AC85~265V
Rated Power: 30W
LED Chip: Chinese/Epistar/BridgeLux
Warranty against Chip: 3 years
LED: 1pce*30W
Color Temprature: 2700~6500K
Ra: ≥ 70/≥ 80
Luminous Flux: 100~110Lm/w of Chinese LED;
110~120Lm/w of Epistar Taiwan;
120~130Lm/w of BridgeLux US
Beam Angel: 120°
Dimension: 225*185*125mm
Material: Aluminium, Tempered Glass
Package: Neutual Box package or according to customer's request.

Competitive Features:
1. CE approved and RoHS compliant
2. High Luminous efficiency
3. High brightness with good heat sink
4. Tempered glass: Heat-proof, crash-proof, waterproof
5. Steel bracket
6. Stainless steel external nuts and screws
7. Die casting Aluminum Body
8.80% energy saving
9. No flickering, No UV, No infra-red radiation. Environment-Friendly and Healthy.
10. Long life-span
11. Quick connection
12. Easy installation and low maintenance
13.3 years warranty
14. Shock and vibration resistant, more durable
15. Varieties of colors to meet the requirements of different applications
16. No noise, no flicker and no UV radiation, eco-friendly and health harmless

Customized Service:
All LED lights can be customized according to your drawings or requests.

30W IP65 LED Flood Light with Epistar Chip and EMC Driver

Model No.		STK-F3C-G-010	STK-F3C-G-020	STK-F3C-G-030	STK-F3C-G-050	STK-F3C-G-070	STK-F3C-G-100	STK-F3C-G-150
Input Voltage (V)		AC85~265	AC85~265	AC85~265	AC85~265	AC85~265	AC85~265	AC85~265
Rated Power(Watts)		10	20	30	50	70	100	150
LED		1pce*10W	1pce*20W	1pce*30W	1pce*50W	1pce*70W	2pcs*50W	3pcs*50W
Beam Angle(°)		120°	120°	120°	120°	120°	120°	120°
CCT(K)		2700~6500	2700~6500	2700~6500	2700~6500	2700~6500	2700~6500	2700~6500
Ra (CRI)		≥70/≥80	≥70/≥80	≥70/≥80	≥70/≥80	≥70/≥80	≥70/≥80	≥70/≥80
IP		IP65	IP65	IP65	IP65	IP65	IP65	IP65
Luminous Flux (lm/W)	Chinese LED	100~110	100~110	100~110	100~110	100~110	100~110	100~110
	Epistar Taiwan	110~120	110~120	110~120	110~120	110~120	110~120	110~120
	BridgeLux US	120~130	120~130	120~130	120~130	120~130	120~130	120~130
Dimension(mm)		1158590	180140100	225185125	285235155	370285110	370285110	425325200
