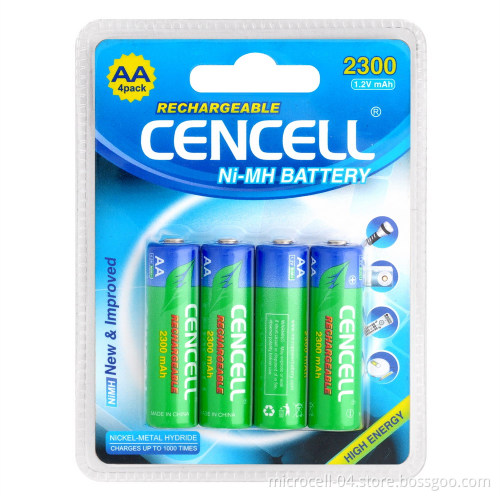

Rechargeable Battery Ni-MH AA 2300mAh

Kinds: Nickel metal hyride cylindrical cell(Ni-MH battery)
Size: AA
Capacity: 2300mAh
Nominal voltage: 1.2V.
Standard charge: 230mahx16h
Rapid charge current: 1150mAh
Trickle charge current: 69-115mAh
Discharge cut-off voltage: 1.0V.
Maximum continuous discharge current: 2300mAh
Dimension: Diameter----14.5-0.7mm; Height----50.5-1.5mm
Approx weight: 32g

Standard charge: First discharge to 1.0V at 460mAh, then charge at 230mAh for 16hours.
Suggestions and cautions:
Charge batteries prior to use
Don't solder directly to battery
Don't short circuit or reverse charge
Don't dispose of in fire and keep away from damage
Store batteries charged in a cool and dry place.
The batteries life maybe reduced if they are subjected to adverse conditions such as: Extreme temperature, deep cycling, abd excessive overcharge/discharge.

Dicharge Curve:
