150bpm Mineral Water Bottling Plant

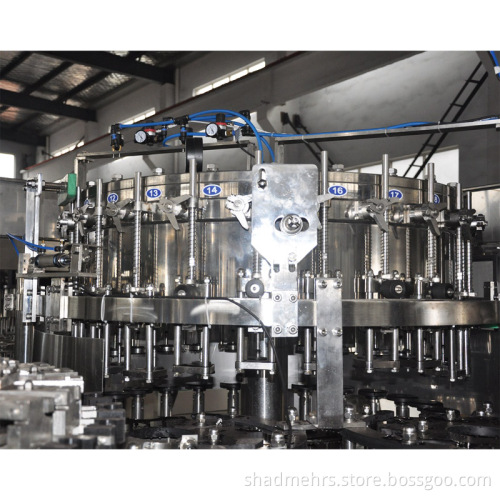

His series of Mineral Water Bottling Plant are applied to the production of pure water, mineral water, with optional capacity from 3, 000 to 30, 000BPH. The washing, filling and capping will be finished just by this one machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottle-neck clamping and bottle suspending technology. Main Feature: This machine has a compact structure, perfect control system, easy to operate and highly automated. The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap. This machine has a high efficient cap arranging system, perfect cap feeding and protection device. Equipped with perfect clean management system to ensure the bottle clean. Only by changing the star-wheel, can realize to fill the changed bottle shape. The machine adopts perfect overload protective device can ensure the operator and machine safe. This machine adopts adjustable frequency converter. The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc. The electric components and pneumatic components are all introduced from world famous brand products. Technical parameter: Model: CGF24-24-8Production capacity: 8, 000-9, 000B/H (500ml)Filling precision: ≤ ± 5mm (liquid level)Filling pressure: <0.4MpaPolyester bottle specification: Bottle diameter: φ 50-φ 110mmBottle height: 150-320mmSuitable cap type: Plastic screw capWater pressure of washing bottle: 0.18-0.25MpaWater consumption for washing bottle: 2500Kg/HSpraying position: 6Dripping bottle position: 3.5Gas source pressure: 0.4MpaGas consumption: 0.4m3/MinTotal power: 6.57KwOverall dimension: 2750× 2180× 2200mm
