Wine Filling Machine

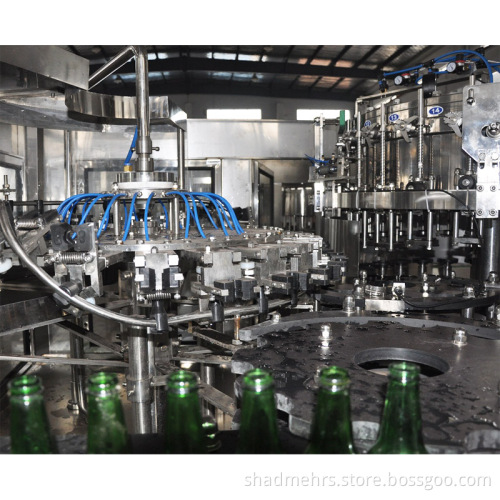

Beer bottling machine Automatic glass bottle beer bottling machine DCGF series 3-in-1 filling mono-block is composed of rinser, filler and capper, which adopts and absorbs advanced technology and is manufactured according to beer production technical requirement. It uses balance pressure filling method with vacuum process and CIP cleaning function. Bottle In-feed 1) The clamp heads use special design clamp head for the glass bottle 2) The convey chain used stainless steel 304 material for long time use. Bottle Washing machine 3) The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water. 4) The rinser is driven by driving system positioned inside machine frame via gear transmission. Bottle filling machine 1) Balance filling method. 2) Filling valves are made of SUS316L. 3) Long-tube filling valves are adopted, with CO2 fully exchanging with air inside glass bottles, to decrease the rinsing of oxygen effectively. 4) High-pressure foam stimulator is equipped to minimize air remaining at the neck. 5) Centralized automatic lubrication system, simple for maintenance. 6) Before capping system, we have jetting system to remove the beer foam on the top of bottle mouth to be sure the Oxygen content less than r0.15 mg O2/l 7) Filling level tolerances: ± 2.0 mm 8) Bottle break rate: Max. 0.01% (1: 10, 000) Bottle capping machine 1) Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism. 2) Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute. 3) The capper is equipped with inlet bottle detection switch. 4) Centrifugal way of cap arranging is adopted to reduce damage of caps. 5) A cap inspecting system is applied to control on-off of cap elevator. Discharge conveyor 1) Driving motor is frequency inverted to synchronize with the filling line to prevent bottles from falling. 2) Discharge conveyor is equipped with photocell switch to slow down and stop filling line in case of fallen bottles. Machine frame 1) The machine frame is a welded structure of high quality stainless steel and carbon steel with the surface anti-rust treated and coated. The machine frame is wrapped with stainless steel sheet (SUS304). 2) Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission. 3) The gear transmission system is an interleaved arrangement of steel gears and nylon gears. 4) The output shaft of the main motor is equipped overload protection to secure machine safety. In-dependent Electrical control box The electrical cabinet is made of SUS304 stainless steel. From bottle in-feed to bottle discharge, a PLC controls the fully automatic operation of the 3-in-1 Unit.
