Product Description
Product Description

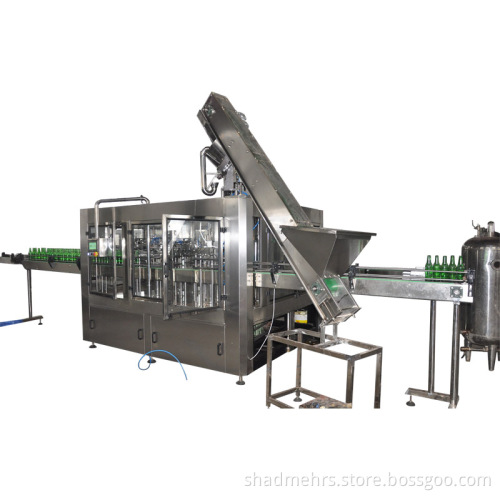

8000-9000B/H Monoblcok Mineral Water filling machine
1. Model: CGF24-24-8
2. Capacity: 8000-9000BPH
3. Filling precision: 5mm
4. Bottle height: 150-320mm
This series of monoblock water filling machine are applied to the production of pure water, mineral water, it integrates bottle washing, filling and capping into one body of the machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Technical parameter:
1. Model: CGF24-24-8
2. Production capacity: 8000-9000b/h (basis on 500ml bottle)
3. Filling precision: ≤ ± 5mm(liquid level)
4. Polyester bottle specification: Bottle diameter: φ 50-φ 120mm
5. Bottle height: 150-320mm
6. Suitable cap type: Plastic screw cap
7. Total power: 5.03Kw
8. Overall dimension: 2450× 1800× 2200mm
9. Total weight: 3500Kg
1. Model: CGF24-24-8
2. Capacity: 8000-9000BPH
3. Filling precision: 5mm
4. Bottle height: 150-320mm
This series of monoblock water filling machine are applied to the production of pure water, mineral water, it integrates bottle washing, filling and capping into one body of the machine. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.
Technical parameter:
1. Model: CGF24-24-8
2. Production capacity: 8000-9000b/h (basis on 500ml bottle)
3. Filling precision: ≤ ± 5mm(liquid level)
4. Polyester bottle specification: Bottle diameter: φ 50-φ 120mm
5. Bottle height: 150-320mm
6. Suitable cap type: Plastic screw cap
7. Total power: 5.03Kw
8. Overall dimension: 2450× 1800× 2200mm
9. Total weight: 3500Kg
