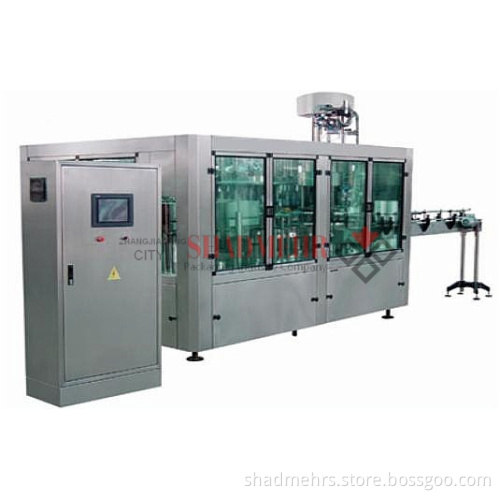

Carbonated Water Filling Machine (DCGF)

The Carbonated Water Filling Machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.
Besides using photo-electronic detectors to detect the running of every important sub-process, it employs PLC from OMRON for automatic control of the whole process and new type air-channel for bottle-loading featuring speediness and damage-free of bottle. The handing-over of bottles between two linking structures is fulfilled by applying clamping-bottle-neck method. For bottle of different shape only a few parts need to be changed and the substituting is simple, which shows the machine is of good adaptability.
High automation and easy operation make it an ideal option for beverage companies.

Technology Spec:
1) Model: DCGF32-32-10
2) Name: Rinsing, filling & capping machine
3) Rinsing heads: 32
Filling heads: 32
Capping heads: 10
4) Capacity: 10000bottle per hour (for500ml bottle)
5) Suitable bottle: PET (sample provided by customer)
Diameter range: Φ 50mm— Φ 115mm
Height range: 160mm— 320mm
6) Suitable cap: Plastic anti-theft
7) Rinsing water pressure: 0.06 MPa < P ≤ 0.2
