Outside Washing Machine (WS)

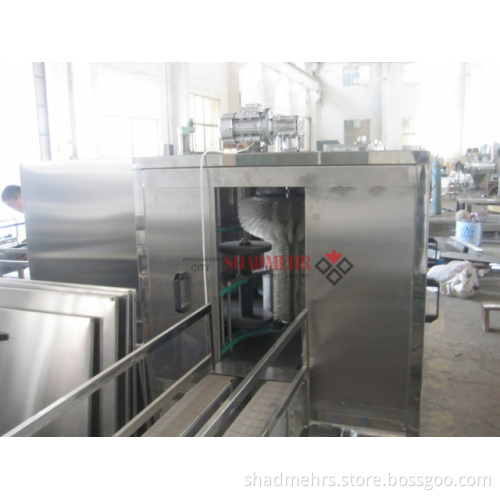

Barrels are transferred by conveyor belt and enter into Automatic outside Brushing Machine. The barrels reverse rotation with inlet direction and rotary bottom brush direction. Barrels finish running one circle of revolution and four circles of rotation via thumb wheel. Rinsing pump continuously spray water or cleaning agent to each brush. There is collecting water pan bellows machine which can collect water and make water flow into cleaning agent case thus to recycle used. Barrels will enter into shower room after 270° Revolution in Automatic outside Brushing Machine and then output by conveyor belt. The water of shower room or cleaning agent is from the same rinsing water pump, and been collected by collecting water pan and flow into the same cleaning case then recycle used. Main technical parameter: Main pneumatic components apply AIRTAC products. AC electromagnetic contactor. Conveyor belt applies stainless steel. The machine applies 304 stainless steel or 316 stainless steel. There is water proof structure in the place of rotary bearing.
