Large Bottle Water Bottling Line

Large Bottle Water Bottling Line

Rinsing machine
1, The circumgyrating tray is welded with SUS304 stainless steel completely.

2, Adopt Promethean overturning grippers. The gripper blocks bottle neck, avoiding possible pollution to bottle mouth screw position caused by rubber pieces of traditional grippers. The gripper is made of SUS304 stainless steel, sanitary and durable.

3, Adopt high-efficiency spray nozzle. Water is sprayed out according to set angle and can wash any position of bottle inner wall. Wash compeletly and it saves water.

4, Bottle grippers and overturning organ adopt anti-erode bearing of IGUS from Germany

5, Rinser drive is transported through gear by drive system in the machine base.

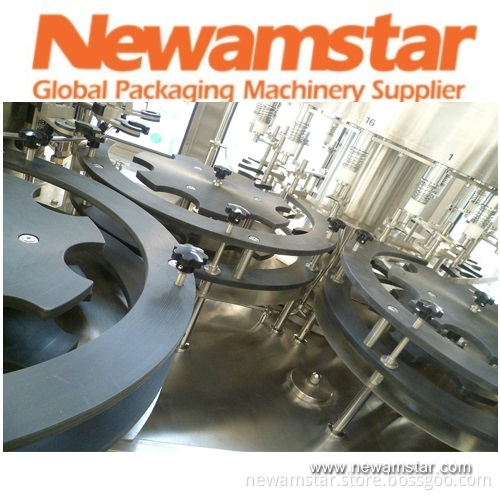

Transition starwheel
Adopt high quality nylonl starwheel.


Filling machine

1, Circumgyrating tray is made of SUS304 stainless steel.

2, Adopt gravity filling.

3, Filling valve is made of SUS316L.

4, High-precision and high-speed filling valve with level precision ≤ ± 2mm.

5, Adopt integer liquid tank and the tank's liquid level is controlled by float ball.

6, Filler drive is provided through transmission of gears by drive system in the machine base.



Capping machine

1, Adopt magnetic constant contortion capping head. Capping effect is stable and reliable. Fraction defective≤ 0.2%.

2, Cap falling rail equips device preventing reverse-caps passing and taking reverse-caps. It equips one group of photoelectric switches. While there is no cap in the rail, the machine will stop running automatically, which avoid bottles without caps effectively.

3, It equips bottle infeed inspection switch, cotroling caps discharge, together with cap locking cylinder in cap dial tray, guaranteeing stopping to feed caps while no bottle and reducing cap lost.

4, High-efficiency centrifugal cap sorting way, little abrasion.

5, Cap unscrambler equips cap-lack inspection device, for control cap elevator.
