Robot Palletizer

Robot Palletizer Equipment description

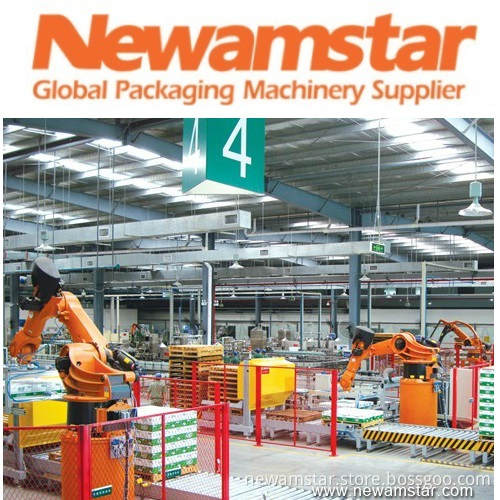

The equipment is composed of robot, hand, case turning device, case conveyor and case catching platform. Working process: The robot puts the pallet in the palletizing position. At the same time, the full cases will be in one line through case distribution belt and turning device and the ordered causes will be put on the pallet by robot. The robot will repeat his actions according to programs set in the computer. The packing format (lines and layers) can be changed according to different requirements.

Robot Palletizer Main features

1, Reliable working: The robot can correctly put the full cases on the pallet.

2, Stable running: Case elevating and falling is very stable.

3, High efficiency: The start and the end are slow and it will be faster during the working process, which can shorten the working time and improve working efficiency.

4, Easy operation: The equipment is the fully automatic one. It can adjust the speed and make the synchronization automatically.

5, Reasonable structure: Reasonable mechanical structure, reliable pneumatic structure and advanced electric controlling technique

6, Safe and reliable: Besides protective cover and safety net, it equips photo electricity protective device. When the operator goes into the dangerous area, the machine will be stopped automatically.


7, Robot palletizing system has following advantages: Low cost, long useful time, low power consumption and can be used in several production line at the same time.


Robot Palletizer Supplier of main components

1 Robotic: ABB/Kuka

2 Gear box: SEW

3 Pneumatic components: Germany FESTO

4 Sliding bearing: IGUS

5 Sensor: TURCK

6 Counter: Autonics
